Model: JZ-902Voltage and electric heating: AC 220V (single phase); 800W (50-60Hz)Size of hot plate: 150 x 180mmSize of base plate: 320 x 360mmMaximum pressure: 800kgTemperature controller: 0-400°

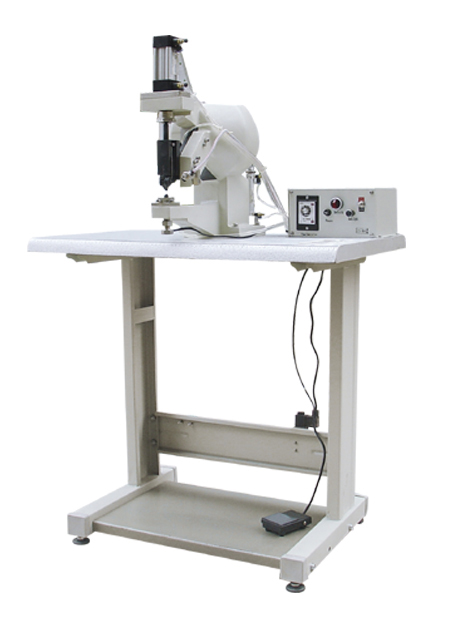

Model: JZ-900BAvailable size of nail head: φ3-9mmAir pressure: 5-6kg/cm²Work speed: 40-70pcs/minPower source: 1HP, 220V, 50/60HzDimensions: 550x550x1,300mmPacking:N.W.: 47kgG.W.: 80kg

Model: JZ-988RRThroat depth: 350mmAir consumption: 3lc/sMotor: 3/4HPWorking air pressure: 6kg/cm2²Height from floor to bottom mold: 1,180mmMachine dimensions (L x W x H): 1,020 x 680 x 1,770mmPac

Model: JZ-906ASpecification: 230mmRevolting speed: 120rpmMachine dimensions: 700 x 420 x 280mmPacking:Packing dimensions: 900 x 550 x 430mmN.W.: 49kgG.W.: 69kg

Model: JZ-916APower: 1/2HPSpecification: 330mmRevolting speed: 100rpmMachine dimensions: 750 x 490 x 300mmPacking:N.W.: 57kgG.W.: 77kgPacking dimensions: 900 x 550 x 4,830mm

Product Name: Fully Automatic Eyeleting MachineModel Number: JZ-989G2Place of Origin: ChinaEyelet face diameter: φ6-15mmEyelet diameter: φ5-25mmEyelet length: 3-8mmThroat depth: 130mmMotor:

Eyelet diameter: 3-12mmEyelet length: 3-8mmThroat depth: 130mmMotor: 1/4HPMachine dimensions (L x W x H): 720 x 660 x 1,430mmPacking:N.W.: 110kgG.W.: 170kg

Model: JZ-8003Power: 1/4HPSource: 220V; 50/60HzElectric heating: 1,700WMachine dimensions: 580 x 460 x 960mmPacking:Packing dimensions: 690 x 580 x 1,100mmN.W.: 85kgG.W.: 100kg

Model: JZ-825, JZ-830Stroke: 10-100mmMotor: 3HP, 4HPPressure: 25MT, 30MTCutting area (L x W): 460 x 1,430mm; 610 x 1,600mmDimensions (L x W x H): 1,830 x 800 x 1,430mm; 1,850 x 1,050 x 1,530mmN.W.: 1,
