Double-Side Calibrating Sanding Machine


The double-side calibrating sanding machine series is unlimited by the original thickness tolerance. It is significant for the woodworking machinery to calibrate the wood-based panel and get the required thickness and precision through double-side sanding. High-precision (thickness tolerance within ±0.08mm after double-side sanding), top-quality, high-efficiency (complete calibrating and polishing single-side or double-side of panel only once) are its advantages. It is mainly applied in calibrating and fine-sanding particleboard, blockboard, MDF, high-pressure overlaying board, plywood, cement particleboard and solid wood.Specifications:Max working width: 1300mmWorking thickness: 5-100mmWorking length: 800mmWorking precision: ±0.1mmAbrasive belt motor power: 75kW x 2 (55kW x 2)Speed of abrasive belt: 25m/sAbrasive belt size: 2,560(L) x 1360mm(D)Auto feeding system (stepless speed shift): 8-40m/minMotor power of auto feeding system: 11kWTotal power: 163.2 (123.2) kWAir pressure: 0.6-0.9MPaConsumption of compressed air: 1.5cbm/hSpeed of dust-collecting system: 20-30m/sConsumption of dust-collect system: 30,000cbm/h

Add to BasketAdd to Basket Web addressWeb address



Other goods of this manufacturer :
Foam Board Extrusion Machinery
 Foam Board Extrusion Machinery ( Foam Board Extrusion Machinery)
Features:1) XPS foamed board produced by this line, also named as polystyreneextrusion plastic board (XPS for short) has a perfect closed-pore alveolatestructure2) Density, water absorption, coefficie
Foam Board Extrusion Machinery
 Foam Board Extrusion Machinery ( Foam Board Extrusion Machinery)
Features:1) XPS foamed board produced by this line, also named as polystyreneextrusion plastic board (XPS for short) has a perfect closed-pore alveolatestructure2) Density, water absorption, coefficie

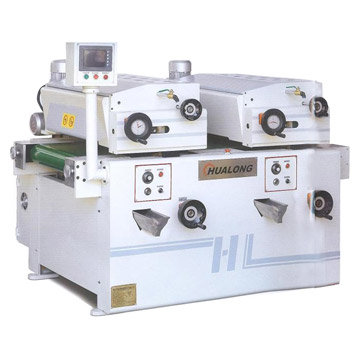

Full Precision Double-Roller Coater
 Full Precision Double-Roller Coater ( Full Precision Double-Roller Coater)
It is widely used for prime, coating and painting work of furniture, flooring, MDF, doors, artwork boards, and blinders. The coating surface is smooth without wrinkling and had good saturation. The co

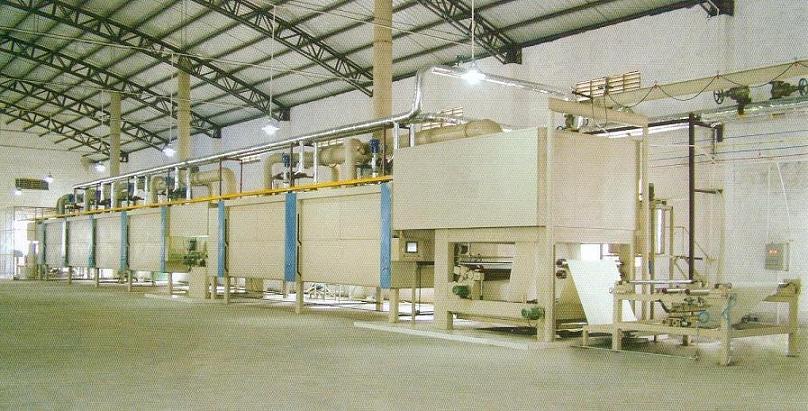

Horizontal Injection Line
 Horizontal Injection Line ( Horizontal Injection Line)
The horizontal injection line is used for producing melamine paper such as printing decoration paper, Al2o3 abrasion-resistant paper, kraft paper, white/gray paper and paper of cement form plate which
Horizontal Injection Line
 Horizontal Injection Line ( Horizontal Injection Line)
The horizontal injection line is used for producing melamine paper such as printing decoration paper, Al2o3 abrasion-resistant paper, kraft paper, white/gray paper and paper of cement form plate which

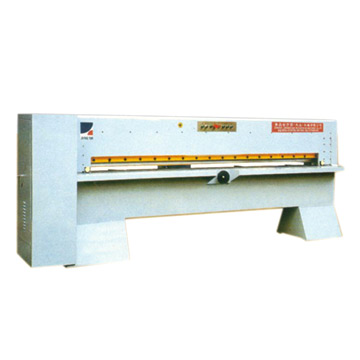

Hydraulic Veneer Guillotine
 Hydraulic Veneer Guillotine ( Hydraulic Veneer Guillotine)
Specifications:1) Max. cutting length: 3,150mm2) Max. cutting thickness: 60mm3) Max. hydraulic pressure: 14MPa4) Hydraulic pump power: 4kW5) Feed motor power: 0.18kW6) Scissors size 3250 x 145 x 16mm7
Hydraulic Veneer Guillotine
 Hydraulic Veneer Guillotine ( Hydraulic Veneer Guillotine)
Specifications:1) Max. cutting length: 3,150mm2) Max. cutting thickness: 60mm3) Max. hydraulic pressure: 14MPa4) Hydraulic pump power: 4kW5) Feed motor power: 0.18kW6) Scissors size 3250 x 145 x 16mm7
Knife Grinder
 Knife Grinder ( Knife Grinder)
Features:1) Parameter/model: YMD-35002) Maximum grinding length: 3,500mm3) Magnechuck width: 200mm4) Velocity of grinding head grinding wheel: 15m/s5) Slide carriage debugging: 14mm/min, 7-26mm/min6)
Knife Grinder
 Knife Grinder ( Knife Grinder)
Features:1) Parameter/model: YMD-35002) Maximum grinding length: 3,500mm3) Magnechuck width: 200mm4) Velocity of grinding head grinding wheel: 15m/s5) Slide carriage debugging: 14mm/min, 7-26mm/min6)
