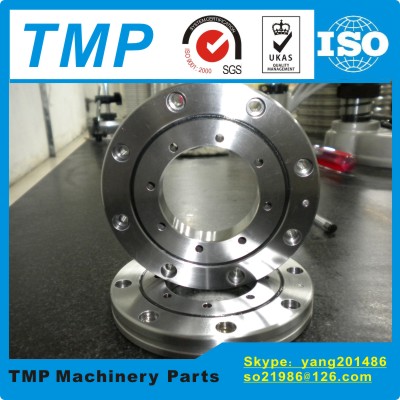

XSU080168 Crossed Roller Bearings (130x205x25.4mm) Turntable Bearing INA Precisi
XSU080168 Crossed Roller Bearings (130x205x25.4mm) Turntable Bearing INA Precision Robotic arm use A . Crossed Roller Bearings Parameters Brand- TMP Model number- XSU080168 Inner ring(mm)- 130 Outer ring(mm)- 205 Width(mm)- 25.4 Weight(Kg)- 3.3 Materials- GCR15/GCR15SiMn Precision grade- P5/P4/P2 Lubrication type- Grease lubrication Rotating part- Inner ring/Outer ring Load direction- Multi-load Structure- Integrated Inner/Outer Ring B . XSU080168 Crossed Roller Bearings Specification Sheet ModelNumberMain dimensionsFixing Hole(Outer ing)Fixing Hole(Inner ing)Basic load rating(Axial)Basic load rating(Radial)WeightKg Inner ringd(mm)Outer ringD(mm)Roller pitchcircle dp(mm)WidthB(mm)Pitch of holes φLaNumbernaPitch of holes φLiNumberniCa KNCoa KNCr KNCor KN XSU08016813020516825.424012145126624042963.3 C . XSU type Crossed Roller Bearings Details Product Features TMP Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. Series Introduction XSU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. Series Model No. XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398,XSU140414,XSU140544,XSU140644,XSU140744,XSU140844,XSU140944 Applications "Product Application-Industrial Robotic arm,Reducer drive-precision Turntable,NC rotary table-Rotation part of Machine tools-Inspection instrument,Medical equipment-Aviation equipment,Military radar etc" http://www.aliexpress.com/store/1500617 http://www.aliexpress.com/store/1462552 http://www.tradebearings.com/so21986/ 0 0 TMP Bearrings,Crossed roller bearing,Thin section bearing,Turntable bearing,Ceramic Ball Bearings,Bearing,Slewing bearing,Robotic bearing,YRT Rotary Table Bearing,Angular Contact Ball Bearing,Thin section ball bearing ,One Way Clutches,One Way Bearings,Drawn Cup Roller Clutches,Overrunning clutches,Indexing clutches,Backstop clutches
