Axial radial bearings YRT50 (50x126x30mm) Rotary Table Bearing Precision slewi

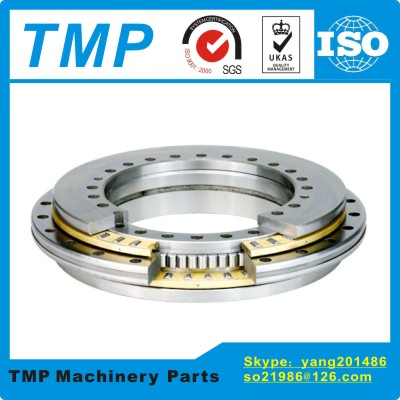

Axial radial bearings YRT50 (50x126x30mm) Rotary Table Bearing Precision slewing turntable bearing A . Axial radial bearings Parameters Brand- TMP Model number- YRT50 Inner ring(mm)- 50 Outer ring(mm)- 126 Width(mm)- 30 Weight(Kg)- 1.6 Materials- GCR15/GCR15SiMn Precision grade- P4/P2 Lubrication type- Grease lubrication Rotating part- Inner ring/Outer ring Load direction- Multi-load Structure- Integrated Inner/Outer Ring,Mounting Hole in Inner/Outer Ring B . Axial radial bearings YRT50 Specification Sheet C . Axial radial bearings YRT Details Product Features Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy. Series Model No.YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580 YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580 Applications " -Precision machine tools-precision Turntable, NC rotary table-Rotation part of Machine tools-Inspection instrument,Medical equipment-Indexing plate of other precision machines etc" D . Axial radial bearings YRT Installation & Cautions "1.Inspect the parts before installing:Clean bearing bracket,main axle or other parts to remove dirt or grease.2.Place the bearing into the bearing bracket and main axle:To match the design clearance ,keep the bearing horizontal and insert the bearing into the bearing bracket or axle.If it is hard to install,use a rubber hammer to slightly hit every part of the bearing,so that the bearing can be attention to the hitting force is too large.Afterwards,the matching status of bearing and basic face can be examined by checking the noise.For a interference fit,use heating or cooling to expand or shrink the parts for ease of installation. Be sure the bearing temperature does not exceed 80℃ .3.Install the mounting disc:Place the mounting disc onto the bearing and align the screw holes, Screw all the bolts in the holes first and follow the orders show in below diagram when tightening bolts in diagonally opposite sequence,Do not tighten bolts randomly.Cautions:1.The normal operating temperature of YRT bearing is 10-80℃, If it is over this range,please contact BYC.2.If a foreign substance enters inside the bearing structure, the rotation route of the roller may be damage, or the bearing may fail.Please clean the bearing by refill the lubricant grease.3.Please do not remove or apply force to the bolt and nut of the split bearing." E . Axial radial bearings YRT Shipping And Payment "Shipping And Payment1. Industrial Neutral Packing,Package as your requirements.2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton3.Large size Bearings:Plastic film+ paper+Roll tape+Wooden Box4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc5.Min.Order Quantity: 5 Piece/Pieces6.Supply Ability: 1500 Units/Year7.Port:SHANGHAI,HK,Guangzhou8.Payment Terms:T/T Feature of Crossed Roller Bearing1. High accuracy and load capacity. Precision ground V grooved ways and rollers. 2. Withstands force in any direction. Alternately crossed rollers 45º angle.3. Easy Installation and get used to small spaces. Threaded mounting holes in standard pattern.4. Factory p reload for minimum axial play and low coefficient of friction. BYC Bearing Service1.Your inquiry to our product & price will be replied within 24 hours. 2.OEM & ODM projects are highly welcomed. We have strong R&D team here to help. 3.Your business relationship with us will be confidential to any third party. These bearings are slim bearings having a small outside diameter, in comparison with the bore diameter, and a narrow width. The type with cage and the type with separator provide smooth rotation and are suit-able for applications where rotational speed is comparatively high. The main products of BYC are crossed roller bearings, YRT rotary table bearings, crossed tapered roller bearings, Thin section ball bearings,Angular contact ball bearings,cylindrical roller thrust bearings. The leading products include crossed roller bearing RB, RE, RU,RA,CRBC, CRBH, XSU, SX series, rotary table bearings YRT, YRTS,YRTM,ZKLDF series, crossed tapered roller bearing JXR, XR series, cylindrical roller thrust bearing" http://www.aliexpress.com/store/1500617 http://www.aliexpress.com/store/1462552 http://www.tradebearings.com/so21986/ TMP Bearrings,Crossed roller bearing,Thin section bearing,Turntable bearing,Ceramic Ball Bearings,Bearing,Slewing bearing,Robotic bearing,YRT Rotary Table Bearing,Angular Contact Ball Bearing,Thin section ball bearing ,One Way Clutches,One Way Bearings,Drawn Cup Roller Clutches,Overrunning clutches,Indexing clutches,Backstop clutches
