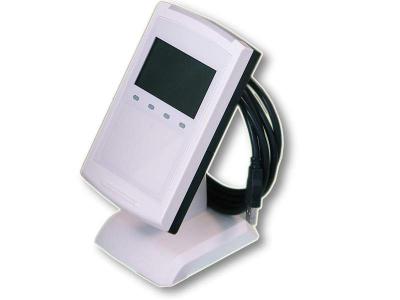

sell 13.56MHZ rfid reader,with LCD display,USB PC/SC


  MR800 series for reader/writer with the popular ARM7 microprocessors are of rapid & stable, reliable operation and beautiful appearance. User can choose freely if with the LCD display modul(128x64). They support boot screen & idle screen set and picture storage etc. The interface is USB PC/SC. They can be directly used the Windows operating system with driver and the API functions. The development cycle simple and short. The reader not only supports series IC cards according to ISO14443 TypeA/B, ISO15693 but also SAM cards compliant with ISO7816 (T=0 and T=1). Qualifications: • PCD: NXP RC531, RC632; RC400, RC500(select) • Working frequency: 13.56MHz• RF standard: ISO14443A, ISO14443B, ISO15693• Operating distance: 100mm (Mifare One, typical distance)• SAM card slot: 2 slots, (supports ISO7816 T=0 and T=1)• Interface: USB PC/SC• Power supply: USB DC5V• Power consumption: 0.9W• LED: four LED (red, green, blue, yellow)• Dimension: 123mm × 88mm × 25mm• Weight: About 200g • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)

Add to BasketAdd to Basket Web addressWeb address



Other goods of this manufacturer :
sell 13.56MHZ@125KHZ access reader,wiegand,RS485
sell 13.56MHZ@125KHZ access reader,wiegand,RS485 (sell 13.56MHZ@125KHZ access reader,wiegand,RS485)
   JMY350 series are the popular type access card reader. The way of installation is 86 electrician-boxes. The interface is RS485 & Wiegand. There are LED status indicator and buzzer
sell ARM9 series-charge control module with dispaly
sell ARM9 series-charge control module with dispaly (sell ARM9 series-charge control module with dispaly)
 JMY901 series, based on NXP PCD, are the USB PC/SC interface smart reader. The reader supports series IC cards according to ISO14443A, ISO14443B, ISO15693 and ISO7816; various contactless IC
sell ARM9 series-SAMSUNG 2440 Core board
sell ARM9 series-SAMSUNG 2440 Core board (sell ARM9 series-SAMSUNG 2440 Core board)
    JMY980 series, based on NXP PCD, are the USB PC/SC interface smart reader. The reader supports series IC cards according to ISO14443A, ISO14443B, ISO15693 and ISO7816; various c
sell hf rfid module,USB(HID standard),can work with Android
sell hf rfid module,USB(HID standard),can work with Android (sell hf rfid module,USB(HID standard),can work with Android)
JMY609, based on NXP PCD, is the reader module. The module supports series IC cards according to ISO14443A, ISO14443B and imitates the USB keyboard to read and output the card data. JMY609 is reade
sell 13.56MHZ rfid module,EMV2000,EMV2010,IIC&UART,50ohm cable
sell 13.56MHZ rfid module,EMV2000,EMV2010,IIC&UART,50ohm cable (sell 13.56MHZ rfid module,EMV2000,EMV2010,IIC&UART,50ohm cable)
  JMY622 series are 13.56MHz RFID reader/writer module with UART and IIC serial ports. The module would meet EMV2000, EMV2010 and PBOC 2.0 standards. And the module and antenna is linked by 50
sell 13.56MHZ rfid module,IIC&UART,4 wires antenna
sell 13.56MHZ rfid module,IIC&UART,4 wires antenna (sell 13.56MHZ rfid module,IIC&UART,4 wires antenna)
    JMY501 series are RFID reader/writer module with UART and IIC serial ports. JMY501 has various functions and supports multi ISO/IEC standard of contactless card; the cards from d
sell 13.56MHz rfid module,multi-porotocol,with SAM slot
sell 13.56MHz rfid module,multi-porotocol,with SAM slot (sell 13.56MHz rfid module,multi-porotocol,with SAM slot)
JMY680 series are RFID reader/writer module with IIC or UART serial ports. JMY680 has various functions and supports multi ISO/IEC standard of contactless IC card; the cards from different supplier
sell 13.56MHZ rfid module,RS232C,50ohm coaxial line
sell 13.56MHZ rfid module,RS232C,50ohm coaxial line (sell 13.56MHZ rfid module,RS232C,50ohm coaxial line)
 JMY612 series are RFID reader/writer module with RS232C serial ports. JMY612 has various functions and supports multi ISO/IEC standard of contactless card; the cards from different suppliers.
sell 13.56MHZ rfid module-JMY607,UART&IIC
sell 13.56MHZ rfid module-JMY607,UART&IIC (sell 13.56MHZ rfid module-JMY607,UART&IIC)
      JMY607 series are RFID reader/writer module with IIC or UART serial ports. JMY607 has various functions and supports multi ISO/IEC standard of contactless IC card; the
