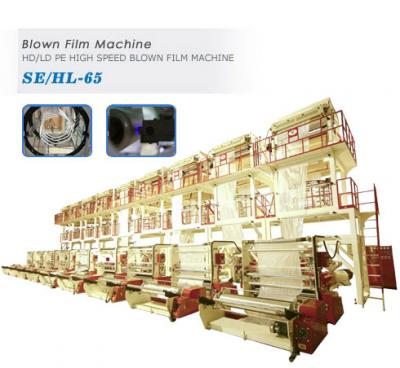

Blown Film Machines

Model SE/HL-45 SE/HL-55 SE/HL-65 Film width (mm) 180 - 600 300 - 900 350 - 1200 Film thickness (mm) HD 0.01 - 0.05 LD 0.02 - 0.15 0.15 - 0.05 0.02 - 0.15 0.02 - 0.05 0.02 - 0.15 Extrusion output (kg/hr) 30-40 40-65 55-85 Extruder Screw type Mixing type Diameter (mm) 45 55 65 L:D ratio 30:1 30:1 30:1 Drive motor (hp) 25 40 60 Heat capacity (kW) 7.2 10 12 Cylinder cooling system air cooling system Temperature Control (zones) 5 5 6 Die Lip diameter (mm) HD 50 & 75 LD 150 75 & 100 200 100 & 120 350 Air blower (hp) 3 5 7 1/2 Air ring (set) 2 2 2 Take-off unit (with elevator) Take-off speed 80 m/min max. DC Drive motor (hp) 1 1 2 Roller width (mm) 760 1000 1400 Winding unit Type Surface friction type Drive motor torque 0.3 m-kg 0.5 m-kg 0.5 m-kg Floor dimensions (m) 4.9 x 2.2 x 4.0 5.1 x 2.4 x 4.3 5.4 x 2.7 x 6.0 Machine weight (kg) 2000 2500 3000 Power required (kW) 25 34 50
