Pipe Making Machines (Машины для производства труб)

Zoom in

Send Request

about this service

Producer information

Company:
Southeast Machinery Co.,Ltd

Address:
No.5-48, Hailiao, Anding Township, Tainan Country 745

Phone:
+886-06-5938640

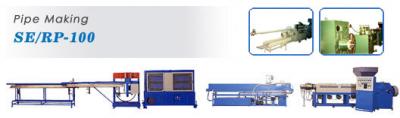

Pipe Making Machines

Model SE/RP-45 SE/RP-55 SE/RP-65 SE/RP-85 SE/RP-100 SE/RP-120 Output (max.) 30kg/hr 45kg/hr 70kg/hr 100kg/hr 130kg/hr 180kg/hr Product Diameter 3/8" - 3/4" 3/8" - 1 1/4" 1" - 2" 2" - 4" 4" - 5" 5" - 6" Extruder Screw Diameter 45mm 55mm 65mm 85mm 100mm 120mm L:D ratio 24:1 24:1 24:1 24:1 24:1 24:1 Barrel cooling 3 zoness 3 zones 3 zones 4 zones 4 zones 5 zones Drive motor 15 hp 20 hp 25 hp 40 hp 60 hp 75 hp Heating capacity 8 kW 12 kW 16 kW 22 kW 35 kW 43 kW Auto thermo control 5 zones 5 zones 6 zones 6 zones 7 zones 8 zones Die Diameter 3/8" - 3/4" 3/8" - 1 1/4" 1" - 2" 2" - 4" 4" - 5" 5" - 6" Vacuum sizing unit Vacuum pump 3 hp 3 hp 3 hp 5 hp 5 hp 7 1/2 hp Water recycling pump 1/2 hp 1/2 hp 1/2 hp 1/2 hp 1/2 hp 1/2 hp Take off unit caterpillar type DC Drive motor 2 hp 2 hp 2 hp 3 hp 5 hp 5 hp Auto cutting unit (include stacker) Drive motor 1/2 hp 1 hp 1 hp 2 hp 3 hp 3 hp Dimension (m) 12x 1x1.7 13.4x 1.8x1.7 15x 1.8x1.8 17x 1.9x1.8 20x 2.1x1.8 22x 2.4x1.8 Machine weight 2000 kg 2500 kg 3000 kg 4200 kg 5600 kg 7000 kg Required power 24 kW 32 kW 39 kW 60 kW 82 kW 110 kW

Add to Basket

Web address

Other goods of this manufacturer :

Plastic Waste Recycling Machines
	Material hd ld pp crusher film Output kg/hr 150 250 Extruder Drive motor 60 hp Speed range 2 step Screw diameter (mm) 100 - 125 L:D ratio 34:1 Barrel With Press

Plastic Waste Recycling Machines
	Material PS/PC/ABS/475 SCRAP PS/PC/ABS/475 SCRAP PS/PC/ABS/475 SCRAP PS/PC/ABS/475 SCRAP OUTPUT 200-250 KG/HR 250-300 KG/HR 300-400 KG/HR 400-550 KG/HR EXTRUDER SINGLE SINGLE SINGLE SINGLE

PVC Profile Extrusion Line
	MODEL SE/PF-45 SE/PF-55 SE/PF-65 SE/PF-85 SE/PF-100 SE/PF-120 Output(max/hr) 25kg 40kg 60kg 80kg 120kg 160kg Extruder Screw diameter 45mm 55mm 65mm 85mm

SE/LD-55OCS SE/LD-65OCS
	Film width (mm) 1200 1500 Film thickness (mm) 0.02 - 0.15 0.02 - 0.15 Extrusion output (kg/hr) 80 130 Extruder　　 Diameter (mm) 55 65 L:D ratio 30╱1 30╱1 Drive mot

Triple layer blow film machine
	MATERIAL HDPE/ LDPE/ LLDPE OUTPUT 120-140 KG/HR EXTRUDER SINGLE TYPE DRIVE MOTOR 75 HP + INVERTER 1 SET 50 HP + INVERTER 2 SET SPEED RANGE STEPLESS SCREW DIAMETER

Triple layer blow film machine
	Material PP OUTPUT 30-50 KG/HR EXTRUDER SINGLE DRIVE MOTOR 30 HP - 6P + INVERTER SPEED RANGE STEPLESS SCREW DIAMETER 55 MM L/D RATIO 30/0 HEAT CAPACITY 12.0 KW TEMP. CONTROL 6 ZO

Triple layer blow film machine
	TITLE 65-55-55MM TRIPLE LAYER HDPE/ LDPE BLOW FILM MACHINE WITH OSCILLTING TAKE-OFF UNIT MODEL SE/HL-65-55-55-OSC MATERIAL HDPE/ LDPE/ LLDPE OUTPUT 120-140 KG/HR EXTRUDER S

Blown Film Machines
	Model SE/HL-45 SE/HL-55 SE/HL-65 Film width (mm) 180 - 600 300 - 900 350 - 1200 Film thickness (mm) HD 0.01 - 0.05 LD 0.02 - 0.15 0.15 - 0.05 0.02 - 0.15 0.02 - 0.05 0.0

Blown Film Machines
	Model SE/LD-55CDX SE/LD-65CDX Film width (mm) 1200 1500 Film thickness (mm) 0.02 - 0.15 0.02 - 0.15 Extrusion output (kg/hr) 140 200 Extruder　 Diameter (mm) 55 65 L:D ratio 30╱
