Series Submersible Pump (4SD(M)4 Series) (Серия погружных насосов (4SD (М) 4 серии))

Zoom in

Producer information

Company:
Zhejiang Fengyuan Pump Industry Co., Ltd.

Address:
Taihu Industry Zone, Daxi Town, Wenling, Zhejiang, China (Mainland) Zip: 317525

Phone:
+86-576-6320770

Series Submersible Pump (4SD(M)4 Series)

Operating conditions:1) Minimum internal diameter of well: 102mm2) Highest temperature of liquid: 40°C3) Water pH: 6.5 - 8.04) Maximum content of solid substance: 50g/m³Pump conditions:1) Outlet: G 1 1/2"2) Maximum capacity: 6m³/h3) Maximum head: 240m4) Shaft: AISI304ss5) Discharge head and suction screen: brassMotor conditions:1) Adopted the NEMA standard2) Power: 0.55 to 2.2kW (single phase 220V/50Hz)3) Power: 0.55 to 4kW (three phases: 380V/50Hz)4) Insulation class: F5) Protection grade: IP 586) Maximum submerged depth: 350m7) Flat water proof cable with separated earth, length: 1.5m (0.37 - 1.1kW);1.8m (1.5 - 2.2kW); 2.5m (3 - 4kW)8) Special scaled product required by customers can be provided

Add to Basket

Web address

Other goods of this manufacturer :

Sewage Submersible Pump
	Features:1) Application: mining, building pits, factory, sewage processor etc.2) Operating conditions: maximum environmental temperature: 40°C3) pH scale ranges from 4 to 104) Density of liquid:

Stainless Steel Submersible Pump (4SP(M)2 Series)
	Operating conditions:1) Minimum internal diameter of well: 102mm2) Highest temperature of liquid: 40°C3) Water pH: 6.5 - 8.04) Maximum content of solid substance: 50g/m³Pump specifications:1)

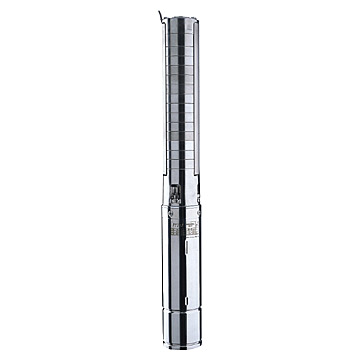

Stainless Steel Submersible Pump (4SP(M)3 Series)
	Operating conditions:1) Minimum internal diameter of well: 102mm2) Highest temperature of liquid: 40°C3) Water pH: 6.5 - 8.04) Maximum content of solid substance: 50g/m³Pump specifications:1

Stainless Steel Submersible Pump (4SP(M)3 Series)
	Operating conditions:1) Minimum internal diameter of well: 102mm2) Highest temperature of liquid: 40°C3) Water pH: 6.5 - 8.04) Maximum content of solid substance: 50g/m³Pump specifications:1)

Stainless Steel Submersible Pump (4SP(M)5 Series)
	Operating conditions:1) Minimum internal diameter of well: 102mm2) Highest temperature of liquid: 40°C3) Water pH: 6.5 - 8.04) Maximum content of solid substance: 50g/m³Pump specifications:1)

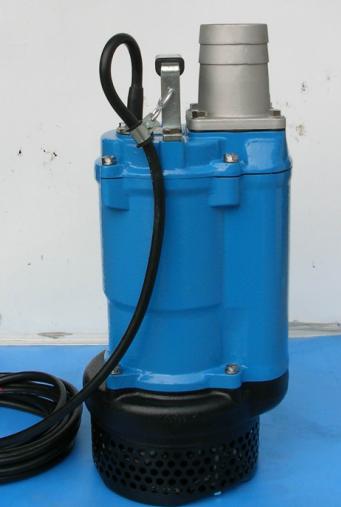

Submersible Dewatering Pump (FY)
	Features:1. Semi-open high chrome iron impeller with ductile iron wear plate increase wear resistance2. Double inside mechanical seals with silicon carbide3. Highly efficient continuous duty, copper w

Submersible Dewatering Pump (FY)
	Product Name: Submersible Dewatering Pump (FY)Place of Origin: ChinaFeatures:1. Semi-open high chrome iron impeller with ductile iron wear plate increase wear resistance2. Double inside mechanical sea

Submersible Motor
	Standards:1) Conform to international standard of IEC34-ICE2) Outer shell, shaft and bottom made of stainless steel3) Copper annoy or Nickel plated cast-iron upper and bracket4) Pressure automatic adj

Submersible Motor
	Standards:1) Conform to international standard of IEC34-ICE2) Outer shell, shaft and bottom made of stainless steel3) Copper annoy or Nickel plated cast-iron upper and bracket4) Pressure automatic adj
