Submersible Motor (Погружной электродвигатель)

Zoom in

Producer information

Company:
Zhejiang Fengyuan Pump Industry Co., Ltd.

Address:
Taihu Industry Zone, Daxi Town, Wenling, Zhejiang, China (Mainland) Zip: 317525

Phone:
+86-576-6320770

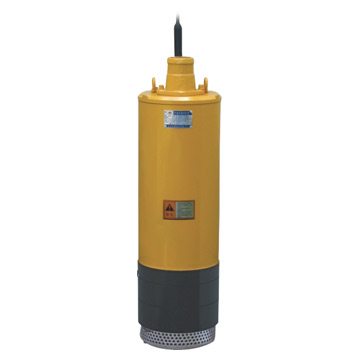

Submersible Motor

Standards:1) Conform to international standard of IEC34-ICE2) Outer shell, shaft and bottom made of stainless steel3) Copper annoy or Nickel plated cast-iron upper and bracket4) Pressure automatic adjusting device made of oil and water proofreformed butyl-rubber5) Flange connector under the standard of NEMA (USA NationalElectrical Manufacturing Association)Specifications:1) Ratings: single phases: 0.37kW - 2.2kW; three phases:0.55kW - 4kW2) Voltage: single phase 220 - 240V / 50 - 60Hz; three phases:380 - 415V / 50 - 60Hz3) Thrust load: 1,500N (0.37kW - 0.75kW), 2,500N (1.1kW - 4kW)4) Insulation class: F5) Degree of protection: IP586) Max. ambient temperature:40°C7) Water pH: 6.5 - 8.08) Maximum content of solid substance: 50g/m39) Maximum submerged depth: 350m10) Minimum cooling flow along the motor: 8cm/sec11) Maximum starts per hour: 3012) Flat water proof cable with separated earth, length: 1.5m(0.37 - 1.1kW); 1.8m (1.5 - 2.2kW); 2.5m (3 - 4kW)13) Special scaled product required by customers can be provided

Add to Basket

Web address

Other goods of this manufacturer :

Submersible Pump
	Features:1) Applications: mining, building pits, factory, farm etc.2) Operating conditions: maximum environmental temperature: 40°C3) pH scale ranges from 6.5 to 84) Density of liquid: 1.3g/cm&sup

Submersible Pump
	Features:1) Applications: mining, building pits, factory, farm etc.2) Operating conditions: maximum environmental temperature: 40°C3) pH scale ranges from 6.5 to 84) Density of liquid: 1.3g/cm&sup

Submersible Pump (100QJ(D)10 Series)
	Minimum internal diameter of well: 102mmPump specifications:1) Outlet: G 2"2) Maximum capacity: 22m³/h3) Maximum head: 88m4) Highest temperature of liquid: 40°CMotor specifications:1) Adopted

Submersible Pump (100QJ(D)10 Series)
	Minimum internal diameter of well: 102mmPump specifications:1) Outlet: G 2"2) Maximum capacity: 22m³/h3) Maximum head: 88m4) Highest temperature of liquid: 40°CMotor specifications:1) Adopted

Submersible Pump (100QJ(D)2 Series)
	Minimum internal diameter of well: 102mmPump specifications:1) Outlet: G1 1/42) Maximum capacity: 4.5m³/h3) Maximum head: 225m4) The highest temperature of liquid: 40°CMotor specifications:1)

Submersible Pump (100QJ(D)2 Series)
	Minimum internal diameter of well: 102mmPump specifications:1) Outlet: G1 1/42) Maximum capacity: 4.5m³/h3) Maximum head: 225m4) The highest temperature of liquid: 40°CMotor specifications:1)

Submersible Pump (100QJ(D)2 Series)
	Minimum internal diameter of well: 102mmPump specifications:1) Outlet: G1 1/42) Maximum capacity: 4.5m³/h3) Maximum head: 225m4) The highest temperature of liquid: 40°CMotor specifications:1)

Submersible Pump (100QJ(D)4 Series)
	Minimum internal diameter of well: 102mmPump specifications:1) Outlet: G1 1/22) Maximum capacity: 6m³/h3) Maximum head: 175m4) Highest temperature of liquid: 40°CMotor specifications:1) Adopt

Submersible Pump (100QJ(D)4 Series)
	Minimum internal diameter of well: 102mmPump specifications:1) Outlet: G1 1/22) Maximum capacity: 6m³/h3) Maximum head: 175m4) Highest temperature of liquid: 40°CMotor specifications:1) Adopt
