In textile industry, GA339 type warping-sizing combination machine is a kind of preparation facility before spinning, which could meet complicated starching craftwork requirements of yarn dyed fabric and white embryo fabric like wool, cotton, hemp, and mixed fabric. It gathers the advantages of horizontal warpers and sizing machines, and fulfills production of driving shaft.The machine is adapted for mass production, variety production, yarn sample production, and slashing and warping course of new product development. It has characteristics, such as low percentage of coverage of yarn, good integrity of chorion, quick variety rotation, and high efficiency, good quality, saving original ancillary materials, reducing production and decreasing production cost. It is better corollary equipment for kinds of rapiers, piece edges and jet looms.1. Sphere of application: 6-100s pure cotton yarn, T/C yarn, flax2. Warping working width: 1,800-3,200mm (according to customers` requests)3. Cone angle: 1:84. Flange diameter: ≤1,000mm5. Warping speed: 0-100m/min6. Beaming speed: 0-100m/min7. Beaming tension: ≤6,000N8. Precision of displacement: 0.001mm9. Paired bar precision: 0.01mm10. Displacement range: 0.001-9.999mm11. Squeezing pressure: 0-560kg12. Stock rough volume: main stock rough 150L, assistant stock rough 100L13. Steam capability: 300kg/hr (0.3Mpa≤vapor pressure≤0.35Mpa)14. Installed power: 30kW (basic type)15: Slow speed: 0.5-5m/min
V-shaped circulated bobbin creel is assorted with direct warping machine for chopped fiber. Its advantages include: shorter creel body, no carrier between frame and creel reed, especially adapted for
Collect, warp and wind warp into ball shape for the use of rope-dyeing.1. Shape diameter: 800mm, 1,000mm2. Shape width: 1,000mm, 1,200mm3. Warping speed: ≤400m/min4. Warping length error: ≤0.2%5

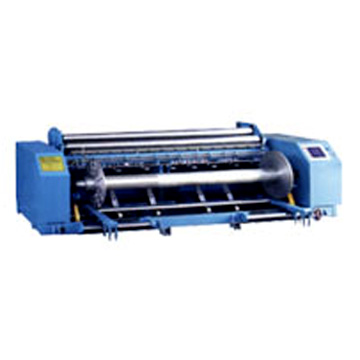

It is used to weave folk fabrics, carpet base fabrics, packing bags and decorations.1. Winding diameter: 800mm, 1,000mm2. Warping rate: ≤ 150m/min3. Lifting stroke of the platform: 500mm4. Single y

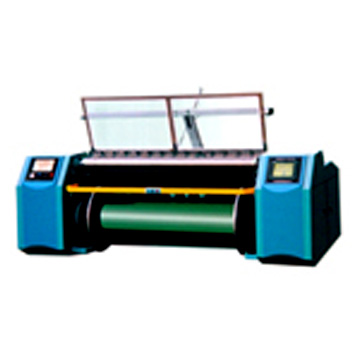

This machine can accurately control the winding density, length and arrangement of warp yarn, thus it is suitable for directly warping of various cotton yarns and T/C yarns, and is the pre-weaving pre
The machine can be applied to directly various chopped yarns. It has the characteristics of high efficiency, uniformity density and flatness thread, so this kind of machine is the ideal equipment for
