1 Auto sense serial signal rate, zero delay automatic transmit2 Support 5V Volt input, +14 or -14V Volt output, consumption 2W3 Internal or external power choice.4 Multi-mode 2KM, signal-mode 20KM, 40KM, 60KMCommunicationStandard Accord: EIA RS-232 standardRS-232 signal: IN, OUT, GNDFiber signal:IN, OUTWorking Asynchronism, point to pointAdopt automatic send data control ,auto distinguish and control data transfer directionBand rate 0-120Kbps, auto serial band rate testFiber wavelength: Multi-mode 850nm, signal-mode 1310nmRS-232 port 15MOptic port transmission Multi-mode 2KM, signal-mode 20, 40, 60KMInterface protection 600W surge protection, 15KV static protectionElectricity port DB-9 femaleOptic port Multi-mode adopt ST/SC/FC connector, signal-mode adopt FC/SC/ST connectorWorking temperature: -25 to 70Storage temperature: -40 to 85Humidity: Reality humidity 5% to 95%Input power: 5-40VACConsumption: 2WL*W*H: 100mm*69mm*22mmShell: IronColor: WhiteWeight: 250g
1 Auto sense serial signal rate, zero delay automatic transmit2 Support 5V Volt input, +14 or -14V Volt output, consumption 2W3 Internal or external power choice.4 Multi-mode 2KM, signal-mode 20KM, 40

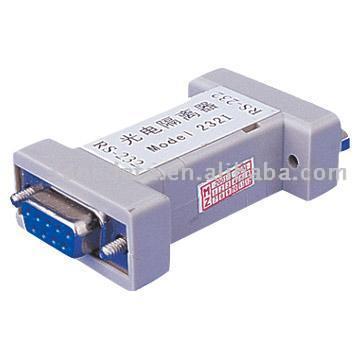

Model232I is a kind of RS232 system communication serial port optic isolation product.This product support transmission rate as high as 57,600bps, no external powerneeded, optic electric isolation 5KV
Model232I is a kind of RS232 system communication serial port optic isolation product.This product support transmission rate as high as 57,600bps, no external powerneeded, optic electric isolation 5KV
Product Name: RS232 Line DriverModel Number: MODEL232DPlace of Origin: ChinaModel 232D is a kind of RS-232 system communication extending product. This type of product supports transmission rate as hi
1) Powered from double side, 2,500 isolation 1,500W surge protection2) Transmit distance reaches up to 1,800m at the rate of 115.2kbps3) Adopt interface auto-adapt technology, no DIP switch setup, ran
The Model277 Series converter is equipped with a multiple interface circuit thatcan handle RS-422/485 serial interfaces andmulti-mode or single- mode fiber. Model277converters are used to extend seria
The Model277 Series converter is equipped with a multiple interface circuit thatcan handle RS-422/485 serial interfaces andmulti-mode or single- mode fiber. Model277converters are used to extend seria
IEEE 1000-4-5 and ITU-TK20&K21 are the recognized standards for top quality surgeprotectors, FL485 have high respond speed, low output rudimental voltage, ascendance transfer performance . All have #1
