Corner Cleaning Machine CNC (Зачистной автомат с ЧПУ)

Увеличить картинку

Информация о производителе

Компания:
Jinan Chenhe Machine Co., Ltd.

Адрес:
Factory Building 4, Jinan Xinghe Private Science and Technology Garden, Shilihe Village, Yaojia Town, Lixia, Jinan, Shandong, Ch

Телефон:
+86-531-88908266

.

Features:1) Used for cleaning all types welding seams2) Good performance, simply operating and high reliability for adopting imported computer system3) Seven cutters setting in machine almost has the function of fluctuating, adjustment and quick replacing, etc.4) This machine is installed in side way to make maintenance simple and convenient.5) A special cutter for inner slants of different profiles can realize inner slant cleaning but needs no any adjustment6) Automatic diagnoses of computer can prevent accident7) EMS memory of computer can store many programs for different profiles processing8) Operating interface is very convenient for user9) Main parts have the function of good performance and long-term usage, including motor, imported servo-drive system, computer control system, electromagnetic valve, etc.10) This machine is used for production line together with welding machine through conveyer and manipulatorParameters:Input voltage: 3N - 50Hz, 380/220VInput power: 9.5kWAir pressure: 0.5 - 0.8MPaAir consumption: 150L/minProfile height: 30 - 120mmProfile width: 20 - 120mmOverall dimensions: 2,160 x 1,300 x 21,00mmWeight: 1,200kg

Отложить товар

Сайт производителя

336x280 banner

Другие товары этого производителя :

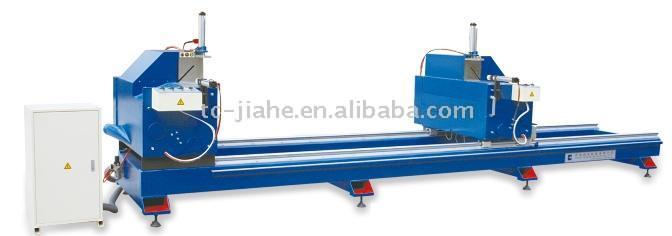

Цифровой дисплей Двухпильный пилы
	Features:Digital display the profile cutting length and quantityAdopted imported magnetic ruler to control cutting lengthAutomatic 45-90°cutting angle changeOne time four pieces of profiles cutti

Цифровой дисплей Двухпильный пилы
	Product Name: Digital Display Double Mitre SawModel Number: LJZ2C-450 x 5000Place of Origin: ChinaFeatures:Digital display the profile cutting length and quantityAdopted imported magnetic ruler to con

Цифровой дисплей Дважды глава Precision распиловки
	Features:1) Used for especially wide profiles cutting such as aluminum profile, curtain walland radiator2) Feeding system adopts imported linear guide pair, with high accuracy and stability3) Right he

Двухместные Miter пилы
	Features:1) Used for aluminum door-window and curtain wall profile cutting2) Adjustable head movement uses hi-precision ball screw for accuratepositioning and stable running3) Automatic unloading4) Tw

Двухместные Miter пилы
	Product Name: Double Miter SawModel Number: LJZ2-450X3700Place of Origin: ChinaFeatures:1) Used for aluminum door-window and curtain wall profile cutting2) Adjustable head movement uses hi-precision b

Двухместные Miter пилы
	Features:1) Used for aluminum door-window and curtain wall profile cutting2) Adjustable head movement uses hi-precision ball screw for accuratepositioning and stable running3) Automatic unloading4) Tw

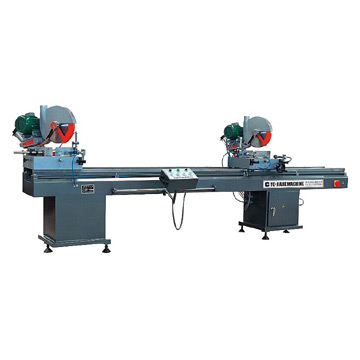

Двухпильный пилы
	Product Name: Double Mitre SawModel Number: LJB2-350x3500Place of Origin: ChinaFeatures:1) Used for plastic and aluminum profile cutting angle between -45° and 45°2) Feeding in a linear way

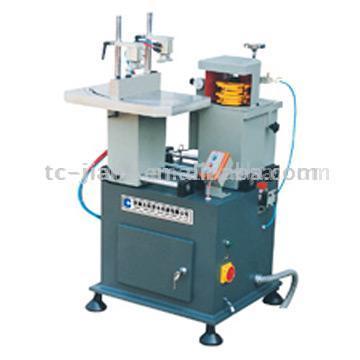

Конец фрезерный станок
	Features:1) Used for processing various profiles end and step face etc.2) Uniform speed feeding and high milling quality due to adjustable feeding system3) Convenient operation and high efficiency wit

Конец фрезерный станок
	Product Name: End Milling MachineModel Number: LXD-200Place of Origin: ChinaFeatures:1) Used for processing various profiles end and step face etc.2) Uniform speed feeding and high milling quality due
