Features:1) CAT3306 diesel engine, power is 15kW (210hp)2) High quality hydraulic components: main pump and valves adopt Prexroth3) Advanced hydraulic system: opening circuit and hydraulic direction changing4) High / low pressure switch can be easily control, to adjust pump condition in accordance with requirements5) Can be controlled by remote control, to be easily operated by operator6) Hydraulic support stands can be easily positioned at the job site7) Tungsten steel and imported German rubber piston to reach up to 40,000cbm concrete8) Compact main value system, high flux, low oil temperature, reliable and low malfunction rate9) Main parts of electrical control system adopts original imported partsSpecifications:1) Main oil pump: A11vl01902) Main oil cylinder: Φ125 x Φ80 x 1,600mm3) Conveyor cylinder: Φ200 x 1,600mm4) Cylinder stoke: 1,600mm5) Frequency for high pressure: 18.7 times/min, for low pressure:31 times/min6) Concrete output for high pressure: 56.4cbm/h, for low pressure:93.5cbm/h7) Pumping pressure for high pressure: 12.5MPa, for low pressure:7.38MPa8) Hopper structure type: skirt valve9) Hopper capacity: 550L10) Output port tube diameter: 175mm11) Height: 1,450mm12) Diesel engine: CAT3306, water cooled13) Control system: fully hydraulic opening system14) Cooling type of hydraulic system: breeze, wind-cooled15) Output type: hydraulic control16) High / low pressure cut off automatically17) Chassis model: DHZ5110XXYG18) Overall dimensions: 9,080 x 2,485 x 3,010mm19) Total weight: 11,150kg
Features:1) Powerful machine adopts caterpillar diesel engine (made in China)2) Import generator is optional3) The high quality hydraulic components and valves use Germen REXPOTH products4) The valve
Product Name: Trailer Concrete PumpModel Number: TM90DPlace of Origin: ChinaFeatures:1) Powerful machine adopts caterpillar diesel engine (made in China)2) Import generator is optional3) The high qual
(jaw crusher, cone crusher, impact crusher, hammer crusher)The crusher of this series is suitable for crushing varies of mid-hard and abovemid-hard ores and rocks. This crusher has the advantage of re
Product Name: Cone CrusherPlace of Origin: China(jaw crusher, cone crusher, impact crusher, hammer crusher) The crusher of this series is suitable for crushing varies of mid-hard and abovemid-hard ore

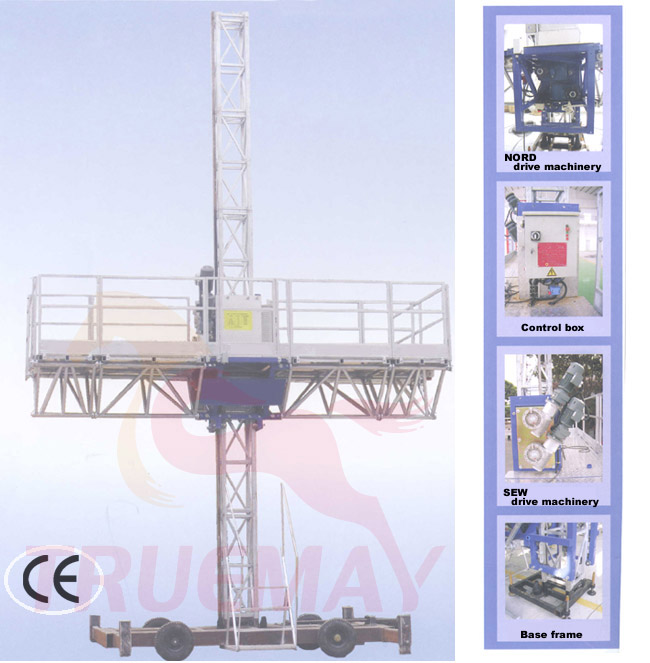

Construction platform works with the same driving principle with the building hoist. So its main parts can be interchanged with building hoist such as mast sections, rack, pinion, reducing device and
Construction platform works with the same driving principle with the building hoist.So its main parts can be interchanged with building hoist such as mast sections, rack, pinion, reducing device and s
Product Name: Construction PlatformModel Number: TMSCP230/9D, TMSCP200/12DPlace of Origin: ChinaConstruction platform works with the same driving principle with the building hoist.So its main parts ca
