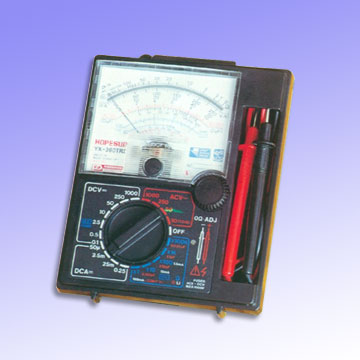

Analog multimeter1) This instrument is portable multitester designated for measurement of weak current circuits2) Panel face protection cover which serves alow as a stand is employed3) Our technology has made it possible to measure high resistance(up to maximum 200MΩ)with low voltage4) Band meter of drop shock type with high sensitivity has beer employed5) Overload protection circuit up to maximum 230V is provided6) DCV=0.1/0.5/2.5/10/50/250V(20kΩ/V) ±3%f.s. 1000V ±5%f.s.7) ACV=10/50/250/V(9kΩ/V) ±4%f.s.1000V ±5%f.s.8) DCA=50μ/2.5m/25m/0.25A ±3%f.s.9) Ω=2k/20k/200k/2M/200M ±3% of arc.10) C=10WF11) dB =-10dB～+62dB12) Ll=15μ/150m/15m/150mA13) hFE=0～100014) Power source: R6 (1.5V) x 215) Size: 160 x 128 x 41mm16) Weight: 290gPacked in gift box, 40pcs/ctnDimensions: 47 x 33.5 x 29cmN.W.: 14kgG.W.: 15.5kg
Analog multimeter1) Excellent DC resolution factor of 2mV and expanded resistancemeasurement from 0.2Ω to 20MΩ2) Series capacitor terminal (OUTPUT) blocks DC to enable measurementof only AC

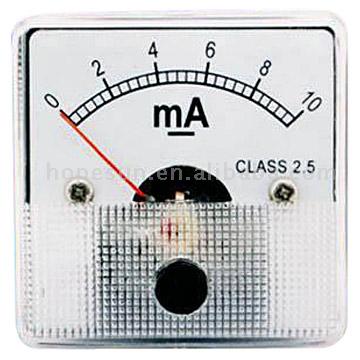

Product Name: Analog Panel MeterModel Number: JM-670A/B/CPlace of Origin: ChinaAnalog Panel Meter;Packed in gift box, 100pcs/ctnDimensions: 39 x 39 x 25cmN.W.: 8kgG.W.: 9kg
