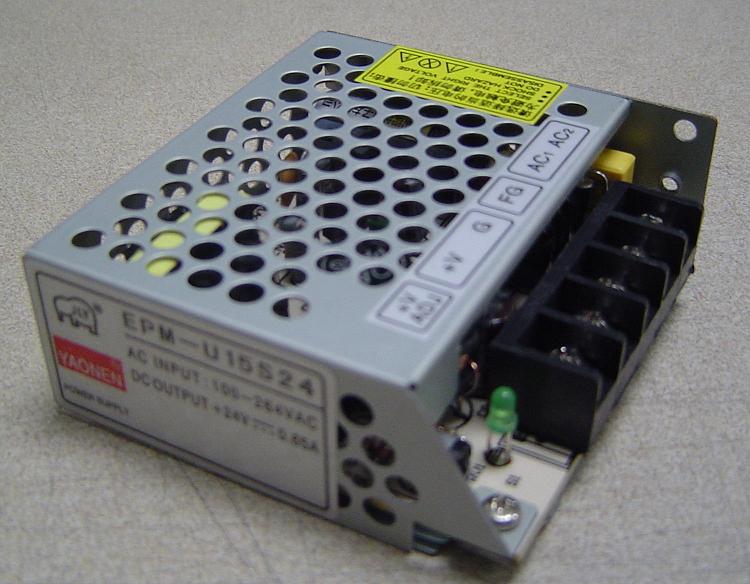

Power Supply (Питание)

English

German

French |

помощь**

Добавить в избранное

Отложенные товары

Описание товара

Электронные компоненты и детали / Электронные компоненты / Переключатели, включатели и разъединители /

Увеличить картинку

Информация о производителе

Компания:
Guangdong Kingwood Electronic Co., Ltd.

Адрес:
Room.801, Electronics & Technology Building,No.63,Zhongshan Street(W),Shipai,Tianhe, Guangzhou, Guangdong, China (Mainland)

Телефон:
+86-20-85275377

.

Input Regulated Voltage /current: AC220V (90-264VAC/0.35A max.)Input inrush Current (A):≤30A (cold start up)Input frequency: 47-63HzOutput Regulated Voltage adjustment range: ±17%Output ripple: 0-20MHz 25mVLine regulation (voltage/current): 0.1%/0.2%Output Regulated Power: 300WOver current protection: 120%-150% of rating, output pulsing modeOver voltage protection: 130% of ratingInsulation Resistance:Input-output: ≥50MΩ, DC 500VInput-ground: ≥50MΩ,DC 500VOutput-ground: ≥50MΩ, DC500VSafety/EMC: EN60950/EN55022Environment:Storage Environment: -20oC to +85oC; 10% to 95% RHOperating Environment: 0oC to +45oC, 20% to 90% RH (non condensing)Cooling method: Natural self-coolingPacking Size (Depth x Width x Height) (mm): 75 x 69 x 27mm
