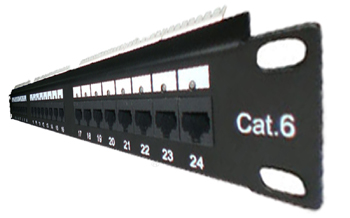

24 Port LED UTP Patch Panel

English

German

French |

помощь**

Добавить в избранное

Отложенные товары

Описание товара

Телефония, коммуникации и сети / Оборудование для проводных сетей / Дополнительное оборудование для проводных сетей /

Увеличить картинку

Отправить запрос

подробнее об услуге

Информация о производителе

Компания:
Star Link IT Company Limited

Адрес:
6/F, #34 LeQun, Xixiang Street, Bao An District

Телефон:
+0086-755-29749755

.

24 Port LED UTP Patch Panel - 19" Rack Mountable - UTP LED Type - ISO9001,RoHS,CE,UL,ETL Approval LED Patch Panel Description: 1. The structure of each port of this patch panel is same which guarantees that the performance of each port is consistent. 2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel. 3. T568A punching sequence and T568 B punching sequence are both compatible. Fit for horizontal installation. Specifications: Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements. Meet TIA/EIA TSB-40 Meet ISO/IEC Generic Cabling Standard 11801 Meet CENELEC Generic Cabling Standard EN50173 Electrical: Angle:180 Degree Termination: 110 Type Current rating: 1.5 Amp Max. Voltage rating: 150 Volts Contact resistance: 20 m-ohm Insulation Resistance: 500M-ohm Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min Materials: Housing: PC UL94V-0 IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire. PCB: FR4 1.6mm(0.04") thickness, 2 layers Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 50 u" Gold plating on contact area.

Отложить товар

Сайт производителя

336x280 banner

Другие товары этого производителя :


	Main Description of The Product: 1. Entire steel 24 ports UTP blank patch panel. UTP Cat.6 or Cat.5e keystone jacks can be assembled on this panel. 2. The cable manager is combined in this pa


	Technique Characteristics: 1. Entire steel outer frame, with plastic powder cladding (nonelectric part ) and zincification cladding (shielding parts ). 2. RJ45 jack frame material: PBT frame wit


	Main Description: 1. The cable manager is combined in this patch panel. All kinds of cables with different dimensions can be fixed to the patch panel. 2. Standards: ISO/IEC 11801:2002 CLASS E and AN


	Features: - Shielded RJ45 keystone Cat5e jack with 110 punch style connectors - Standard 110 IDC style termination on the back allowing for quick termination - 180 degree termination allows for c


	Cat6 Keystone jack features: -U Style Design Keystone Jack, 90 degree 8p8c. Unshielded. -Meets 568-B.2-1 standard. Optional 6-50u" Gold Plated Brass contacts. -UL Listed (94 V-0), compatible wit


	Main Description: 1. The cable management is combined in this patch panel. All kinds of cables with different dimensions can be fixed on the patch panel. 2. Standard: ISO/IEC 11801:2000 CLASS E


	Main Description: 1. The cable manager is combined in this patch panel. All kinds of cables with different dimensions can be fixed to the patch panel. 2. Standards: ISO/IEC 11801:2002 CLASS E and AN


	Main Description: 1. The cable manager is combined in this patch panel. All kinds of cables with different dimensions can be fixed on the patch panel. 2. Standards: ISO/IEC 11801:2002 CLASS E a


	Main Description: 1. 12/18/24/48 ports patch panel, Cat.6 UTP type. The structure of each port is same which guarantees that the performance is always consistent. 2. The cable management is combined
