Description du produit
La communication / le Réseau / les Produits de Téléphonie /  D`Autre Équipement de Télécommunications & Accessoires /
Information sur le fabricant
Société :
haida telecom co.,ltd

Adresse :
NO.802,Yihe Building,Jiefang raod

Téléphone :
+86-317-2040203

.

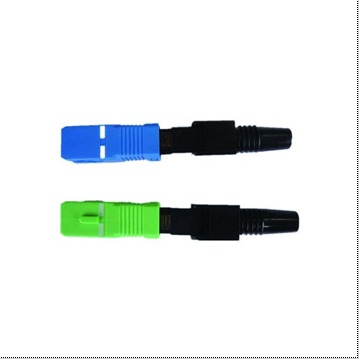

1.Widely used in Fiber to the Home (FTTH) 2.Assembly quickly 3.Operately easy and simpleFast fiber connector is used for field-assembled optical fiber connector, widely used in fiber to the home (FTTH) access optical networks, to assemble with drop cable quickly. The installation process takes about two minutes; the connector during the installation process does not require any adhesive and curing process.ITEMTechnical ParametersApplicable for2.0---3.0 mm Round cableOptical fiber diameter125μm ( 657A & 657B )Tight buffer diameter250μmFiber mode Single modeOperation timeAbout 100s(no fiber cut)Insert loss≤ 0.3dB(1310nm & 1550nm)Return loss≤ -40dBFastening strength of naked fiber>5 NFastening strength of naked fiber holder>10 NTensile strength>50 NUsing temperature-40~+75°COn-line tensile strength (20 N) IL ≤ 0.2dB  RL ≤ 5dBMechanical durability (500 times)IL ≤ 0.2dB  RL ≤ 5dBDrop-off test (drop-off height 4m,once per direction, totally 3 times) IL ≤ 0.2dB  RL ≤ 5dB
RéserverRéserver un produit site du fabricantSite du fabricant




D'autres marchandises de ce producteur :
SC/FC/LC Female-Male (Plug-In Style) fiber Attenuator ()
APPLICATIONS● Telecommunication Networks● Data Networks● Video & CATV    FEATURES    ● Bellcore Compliant    ● Durability (well ove
10/100M WDM Media Converter (single fiber) ()
 HD -WS01/02 series 10/100M Singlemode Single Fiber Media Converter can convert Optical－Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).
16 Slots Media Convertor RACK for Convertor Card ()
It is acceptable for the most 16 sets of different Media Converter Cards within a rack-mountable chassis which is supplied with unified power. Installing at the center of network, it can not only redu
FC/PC field assemble Fast Connector ()
1.Widely used in Fiber to the Home (FTTH) 2.Assembly quickly 3.Operately easy and simpleFast fiber connector is used for field-assembled optical fiber connector, widely used in fiber to the
FTTH fiber distribution box 24port ()
Features:Applicable for wall-mounted installationEasy to be locked and can open repeatedly by the keyCan be used both indoor and outdoorSuit for SC simplex adaptersCan be used both indoor and outdoorM
FTTH fiber terminal box 2port ()
ITEMTechnical ParametersApplicable for3.1 x 2.0 mm Drop cable & indoor cableOptical fiber diameter125μm ( 652 & 657 )Tight buffer diameter (μm）250μm & 900μmFiber mode&nb
FTTH Table Fiber Box 4Port ()
ITEMTechnical ParametersApplicable for3.1 x 2.0 mm Drop cable & indoor cableOptical fiber diameter125μm ( 652 & 657 )Tight buffer diameter (μm）250μm & 900μmFiber mode&nb
HDPE micro duct 14/12/10/8/6mm ()
Suitable for the installation of fibre units containing between 1 and 12 fibres as well as minicable (24-144 fibres) in 5mm, 7mm, 10mm and 12mm microduct diameters the bundles can contain up to 24 ind
HDPE micro duct bundle ()
Suitable for the installation of fibre units containing between 1 and 12 fibres as well as minicable (24-144 fibres) in 5mm, 7mm, 10mm and 12mm microduct diameters the bundles can contain up to 24 ind
