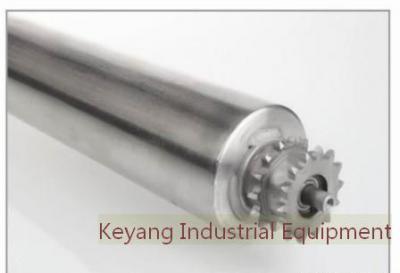

Steel sprocket Tapered conveyor rollers Steel Tapered conveyor roller is welded with tube so that roller can support more torque, widely used in heavy duty pallet conveying system. 1.Steel sproket welded with tube, make it capable to transmit higher torque, and meet the request of transportation of heavy duty load.2.The tapered tube made from 2mm steel plate, steel bearing houses of both sides welded with the tube, tight and durable.3.The covering of the end of roller, well dust proof and water splash proof in operation environment.4.Standard conical degree is 3.6°, other degree could be customized.Applicable conveyor type: Single sprocket or double sprockets roller conveyor conveying Goods: Carton, pallet etc. Applicable situation: Indoor transportation Bearing unit: Punched steel bearing house 6001, 6202, 6204 bearing Tube: Welded steel tube GB/T13793-2008 Outer diameter: 50, 60, 76, 80, 89mm Shaft: Cold round steel GB/T905-1994 Female thread type diameter12, 15, 20mm Driving part: Steel sprocket 45# (teeth type: GB/T1234-1997) Teeth=11, 14 with 08B chain Teeth=13 with 10A chain
Accumulating conveyor rollerEspecial material friction piece to increase the reliability of accumulation and Enhance the accumulation power. Applicable conveyor type: Accumulate chain conveyor&nb
Specifications1. The belt is made of PVC 2. The frame and legs are made of carbon steel with power conating or stainless steel; 3. Dimension: Customized.Plastic belt stainless steel conveyor
Gravity Conveyor Roller Tube Dia 25-89mm thickness 1.5-3mm Znic-plated Carbon Steel plastic or metal end cap Keyang produces a vast range of conveyor rollers for both OEM and replacement market. St
Drive Conveyor Roller Tube Dia 25-89mm thickness 1.5-3mm Znic-plated Carbon Steel,plastic or metal end cap Keyang produces a vast range of conveyor rollers for both OEM and replacement market. Steel
grooved conveyor roller1.It does not make grooves on the tube, but moving the “O-ring” wheel to the end of the roller, make it separate between drive space and convoy space, avoid the inte
Roller, standard precision bearing, stable turning, suit for most of gravity conveyor.Applicable conveyor type: Gravity roller conveyorApplicable situation: Indoor transportationTube DIA: 25-89mmTube
gravity roller conveyor The specification can be met by your requirementGravity roller conveyor1.Carried goods and material: carton, pallet, wooden board and so on2.Ball Bearing grade: precise do
