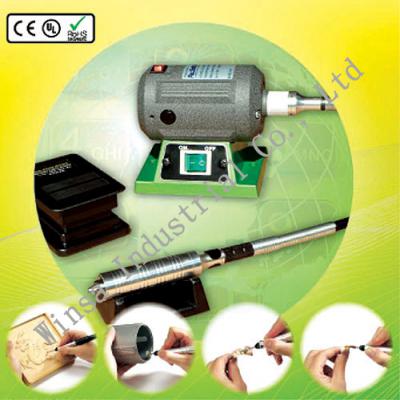

◆ [ Specification ]： (1) Power: (1.1) AC/DC, 50/60 Hz, 110V-120V, 1Ph. (1.2) AC/DC, 50/60 Hz, 220V-240V, 1Ph. (2) Motor Rotation: (2.1) ON/OFF (Counter clockwise) (2.2) Rev. / Off / For. (2 Way Rotation) (3) Motor: 1/3HP (250 Watts) (4) Max Speed: 24,000 rpm (5) Variable Speed Range: 0~22,000 rpm (6) Hand Piece: CS503_Pro 4mm Drill Chuck Hand piece (7) Drill Chuck Applicability: 0.3 mm ~ 4.0 mm Precision Drill Chuck (8) Precision of Error (Drill Chuck): below 0.15mm (9) Hand Piece Vibration in operation (Max Speed): less than 15mm/s (10) Motor Color: Stone Line Gray (Powder Coating) (11) Hand Piece Color: Original Aluminum Color (12) Noise at Working (max speed): (12.1) Motor: 70 dB (12.2) Overall: 75 dB (13) Temperature at Working (max speed, normal environment temp.): (13.1) Motor: under 50 Celsius Degree (13.2) Hose Set: under 40 Celsius Degree (13.3) Hand Piece (grip): under 37 Celsius Degree (14) White Color Box with extra protection (15) Master Carton : 6 sets / carton (Minimum Order Qty) (16) Master carton dimension (cm) : 55*35*44 (17) N.W / G.W : 24.5kgs / 26.0kgs ◆ [ Certificate ]： CE、UL、KEMA、ROHS、REACH、ISO9001 ◆ [ Patents ]： USA、Germany、China、Taiwan ◆ [ Warranty ]： * Warranty of Motor: 2 years * Warranty of Hand piece: 90 days * Warranty of Flexible Shaft set: 300 hours * Warranty of Motor Carbon Brush: 500 hours ◆ [ Feature ]： * CS-302 is the bench type twin item with DREMEL Fortiflex 9100 Flex. Shaft Carving Machine which is the OEM item of WINSA for DREMEL/BOSCH. Quality is ahead of same grade item in the market. * Exclusive patented structure design from WINSA can largely reduce wobble and surface temperature when working operation, improve comfortable using and working safety, and extend lifespan. * Officially SGS Lifespan Test: Over 1000 hrs (No loading, 24 hrs operation). * Flex Shaft Engraving Machine of WINSA is the only one served completed warranty (Motor / Carbon Brush / Flex Shaft Set / Hand piece). * USD 1 million Product Liability Insurance has already been insured. * Representative OEM product: DREMEL FORTIFLEX 9100 Flex Shaft Grinder (Hanging Carving Machine). * 100% Made In Taiwan. ◆ [ Application ]： Wood carving、Grinding / Engraving、Polishing、Jewelry design / process (Jewelry Tool)、Nail cosmetic、DIY uses、Model / Sculpture making、Stone crafting / carving、Pumpkin engraving、denture maintenance、Veterinarian (tooth)、Tattoo、Watch band repair、Vehicles parts modification / repair…etc. ◆ [ Standard Attachment in a complete set ]： * CS-502_36"Pro Flex Shaft Set * 1 set * CS-503_Pro 4mm Drill Chuck Hand piece * 1 pc * CS-314_Rear Type Variable Speed Control Foot Pedal * 1 set * Hand piece Rest * 1 pc * Hexagon Wrench * 1 pc * User's Manual ◆ [ Optional attachment / spare part ]： * CS-507_1/4"(6mm) Collet Hand piece * CS-508_1/8"(3mm) Collet Hand piece * CS-502_48"Pro Flex Shaft Set * Variable speed switch * Carbon Brush * Caps of Carbon Brush
