CAT6/FTP/4PR/23AWG


Product Name: CAT6/FTP/4PR/23AWGModel Number: CAT6/FTP/4PR/23AWGPlace of Origin: ChinaProduct Instruction:Type: CAT6/FTP/4PAIRS/23AWGMaterial Instruction:Conductor: Copper;Insulation: Solid HEPE;Center Cross: PE;Drain Wire: Tinplate Copper;Shield: AL Foil (two-side plastic coated);Sheath: PVC;Transmission characters:Characteristic Impedance (Zo) (1~250MHz): 100+/-15 Ohm;Maximum Insertion Loss (IL) at 250MHz: 32.8dB/100m;Minimum Return Loss (RL) at 250MHz: 17.3dB/100m;Minimum Near End Cross Talk Loss (NEXT) at 250MHz: 38.3dB/100m;Power Sum NEXT (PSNEXT) at 250MHz: 36.3dB/100m;Equal Level Far End Cross Talk Loss (ELFEXT) at 250MHz: 19.8dB/100m;Power Sum ELFEXT (PSELFEXT) at 250MHz: 16.8dB/100m;Velocity of Propagation (VOP) at 250MHz: 0.621c/100m;Propagation Delay (DELAY) at 250MHz: 536ns/100m;Propagation Delay Skew (SKEW) at 250MHz: 45ns/100m;Delivery Instruction:Standard length: 305m;Weight: 18.5kg;Nominal diameter: 7.3+/-0.1mm;Max. Strain Power: 80N;Temperature Range: -40C~+60CMin Order Quantity:1 full 20`containerStandard:ISO/IEC11801-2000;ANSI/EIA/TLA-568-B.2;YD/T1019-2001;YD/T838-1996;UL-444Remark:Another product: CAT6/UTP/4PAIRS/23AWG.

Add to BasketAdd to Basket Web addressWeb address



Other goods of this manufacturer :
Central Tube Fiber Ribbon OFC
 Central Tube Fiber Ribbon OFC ( Central Tube Fiber Ribbon OFC)
Structure:Optical fiber ribbons contained in jelly filled central loose tubes,which is wrapped by water blocking tape. A steel-plastic tapelongitudinally applied on it. Two parallel steel wire as stre
Central Tube Optical Fiber Cable
 Central Tube Optical Fiber Cable ( Central Tube Optical Fiber Cable)
Product Name: GYXTS Optical Fiber CablePlace of Origin: ChinaStructure:Optical fibers contained and jelly filled loose tubes stranded aroundthe metallic central strength member, Water resistant compou
Central Tube Optical Fiber Cable
 Central Tube Optical Fiber Cable ( Central Tube Optical Fiber Cable)
Product Name: GYXTS Optical Fiber CablePlace of Origin: ChinaStructure:Optical fibers contained and jelly filled loose tubes stranded aroundthe metallic central strength member, Water resistant compou
GYDXTW Optical Fiber Cable
 GYDXTW Optical Fiber Cable ( GYDXTW Optical Fiber Cable)
Product Name: GYDXTW Optical Fiber CableModel Number: GYDXTWPlace of Origin: ChinaStructure:Optical fiber ribbons contained in jelly filled central loose tubes, which is wrappedby water blocking tape.

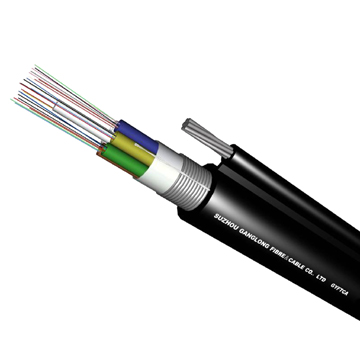

GYFTC8A Optical Fiber Cable
 GYFTC8A Optical Fiber Cable ( GYFTC8A Optical Fiber Cable)
Features:1) Structure:a) Optical fibers and gel filler with non-metallic strengthcomponent (FRP)b) Water blocking compound between spaces of cable corec) Core wrapping layer/water resistant taped) PAP
GYFTC8A Optical Fiber Cable
 GYFTC8A Optical Fiber Cable ( GYFTC8A Optical Fiber Cable)
Features:1) Structure:a) Optical fibers and gel filler with non-metallic strengthcomponent (FRP)b) Water blocking compound between spaces of cable corec) Core wrapping layer/water resistant taped) PAP
GYFTY Optical Fiber Cable
 GYFTY Optical Fiber Cable ( GYFTY Optical Fiber Cable)
Product Name: GYFTY Optical Fiber CableModel Number: GYFTYPlace of Origin: ChinaFeatures:1) Structure:a) Optical fibers and gel filler with non-metallic strengthcomponent (FRP)b) Water blocking compou
GYTA33 Optical Fiber Cable
 GYTA33 Optical Fiber Cable ( GYTA33 Optical Fiber Cable)
Product Name: GYTA33 Optical Fiber CableModel Number: GYTA33Place of Origin: ChinaFeatures:Low loss, low dispersion, unique fiber spare length control andadvanced cabling technology make the cable has
GYTA53 Optical Fiber Cable
 GYTA53 Optical Fiber Cable ( GYTA53 Optical Fiber Cable)
Product Name: GYTA53 Optical Fiber CableModel Number: GYTA53Place of Origin: ChinaStructure:Optical fibers contained and jelly filled loose tubes stranded aroundthe metallic central strength member, W
