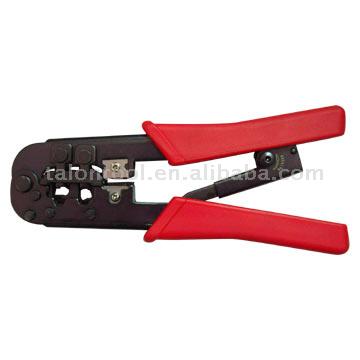

Product Name: Modular Crimping, Stripping and Cutting ToolModel Number: TL-200RPlace of Origin: ChinaPart number: TL-200R, TL-2008R ,TL-200,TL-2008Spec.: 8" (203mm) IInstruction:1) Straight motion and precise crimping2) Cuts, strips, and crimps all kinds of modular plugs without changing modular (die) set3) More in one for crimping solid and stranded wire. Works with all standard plugs: AMP, SS, AT&T license4) Tool TL-200/200R design with 10 position punches. For crimping 8P8C plug, please use the AMP 8P8C plug that has 2 cavities on each side as Fig 15) For stripping, there is a length guide at the inside of 6mm area. Insert 4P or 6P conductor wire, touch the length guide (guide by zinc plating), then press handlesand pull wire to get right stripping. As 12mm is decided by the cutting blade. Insert 8P or 10P conductor wire over cutting blade, so the tool cuts and strips wire at the same time6) Tool 2008/2008R design with 8 position punches for crimping the ordinary 8P8C plug. This kind of 8P plug has no additional cavity on each side as Fig27) TL-200/200R/2008/2008R parts are made of metal. All are rigid and durable8) Built-in cutter at the rear side and stripper at the front side9) For stripping round solid telephone wire, tool TL-S501A/TL-S501B is effective and recommendable10) Adjusting the 6P guide for crimping: use a "-" shape screw driver to set theguide to the right side for crimping normal 6P plug, and set the guide to the left side for crimping DEC plug
1) Part number: TL-546/TL-546R2) Spec.: 7.3" (185mm)Instruction:Deluxe type, frame is made of steel, light weight, compact and durable with key way in 8P modular holder.TL-546R/568R/56DR/568SR/580R ar

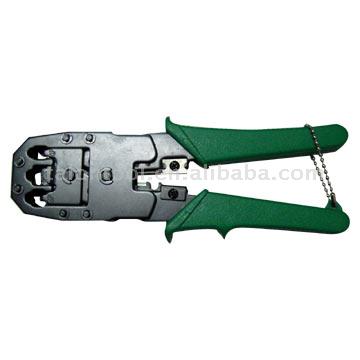

1) Part number: TL-546R /TL-5462) Spec.: 7.3" (185mm)Instruction:1) Deluxe type, frame is made of steel, light weight, compact and durable with keyway in 8P modular holder2) TL-546R/568R are with ratc

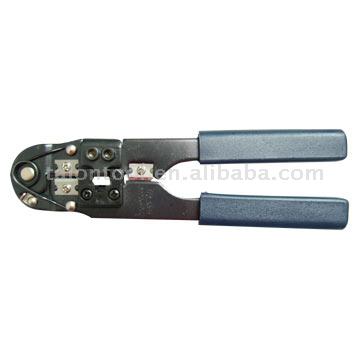

Part number: TL-500R /TL-500Spec.: 7.6" (192mm)Instruction:1) Straight motion and professional type, provides precise operation with key wayin 8P modular holder2) Modular holders are made of Al-Zn all
Part number: TL-200R, TL-2008R ,TL-200,TL-2008Spec.: 8" (203mm) IInstruction:1) Straight motion and precise crimping2) Cuts, strips, and crimps all kinds of modular plugs without changing modular (die
Part number: TL-200R, TL-2008R ,TL-200,TL-2008Spec.: 8" (203mm) IInstruction:1) Straight motion and precise crimping2) Cuts, strips, and crimps all kinds of modular plugs without changing modular (die
1) Part number: TL-568/TL-5684/TL-568R/TL-5684R2) Spec.: 7.3" (185mm)Instructions:1) Deluxe type2) Frame is made of steel, light weight3) Compact and durable with key way in 8P modular holder
1) Part number: TL-N5684R/TL-N568R/TL-N568/TL-N56842) Spec.: 7.3" (185mm)Instruction:1) Deluxe type2) Frame is made of steel, light weight3) Compact and durable with key way in 8P modular holder
