Description
Electronic Components & Parts /  Electro-Adjusting Components & Materials /  Print Circuit Board Components /
Producer information
Company:
N-net Technology Co., Ltd.

Address:
Southeast, 6/F, Yajie Building, Meilin Road, Futian, Shenzhen, Guangdong, China (Mainland) Zip: 518049

Phone:
+86-755-83874688

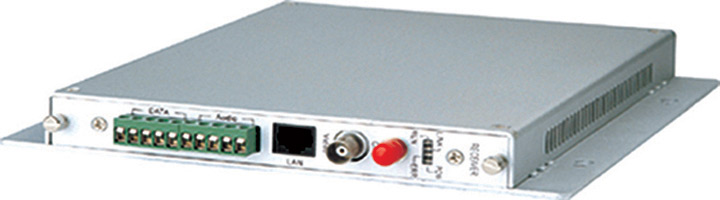

Single Channel V + A + D + E Video Optical Terminal


NT-D110R-E is one kind of single channel V + A + D + E video optical terminal,bi-directional audio, backward audio, forward audio and bi-directional data,backward data, forward data and Ethernet are totally optional.Product characteristics:8/10 bit video signal digital samplingHigh-speed synchronous digital transmission technologyModular structure design (audio card and data card for optional configuration)Super optical dynamic range, no adjustment neededStatus indication for power supply, optical signal and videoNo electromagnetic interference, radio frequency interference and ground currentSafe transmission guaranteed under poor electromagnetic environmentBNC video connectorFC optical connectorVideo DC recoveryMaximum tolerable link loss for single mode fiber is 18dBTechnical indicators:Video characteristics:Video channel: 1 channelVideo input/output impedance: BNC75 unbalanced interfaceVideo input/output voltage: typical peak-peak value 1Vp-pVideo bandwidth: 6.5MHzVideo digital bit width: 8/10 bitsDifferential gain:Differential phase:SNR: >63dBData interface:Number of data channels: 1 - 2 channelsPhysical interface: the industry standard connecting terminalRs-232 rate: DC 115.2KbpsRS-442/485 rate: DC 115.2KbpsRS-485 distance: 0 - 1,200mPhysical protocol: transparent support of RS-232/485/422/Manchester/Biphase protocolAudio interface:Number of audio channels: 2 channelsAudio frequency input/output impedance: unbalanced high impedance10/47k ohm balanced: 600 ohmsFrequency response: 10Hz - 20kHzAudio digital bit width: 16/24 bitsSNR: 75dBAudio interface: unbalanced: industry standard connecting terminalBalanced: audio connectorEthernet interface:The physical interface: shield super CAT5 RJ-45sProtocol supported: IEEE802.3 10Base 10M, 10M/duplexOptical interface:Physical interface: FC / PC, ST / PCFiber type: single mode fiber, single fiber (multi-transmission distance: 0 - 2kmfor multi-mode)Single mode: 0 - 100kmPower supply:Input voltage: AC 220V/DC +5VElectromagnetic compatibility:Radiation: EN50081-1, EN55022- B, CE, FCCMagnetic capacity: EN50130-4, EN50028-1Physical characteristics:Operating temperature: -25 ~ +75°CHumidity: 0 - 95% (no condensation)Induction: EN50130-5, 1995Tidal fever: BS2011Dimension: 227 x 176 x 25 (L x W x H), firmware not includedCasing material: aluminum alloysCasing application: silvery wire drawingWeight: 1.1kg

Add to BasketAdd to Basket Web addressWeb address



Other goods of this manufacturer :

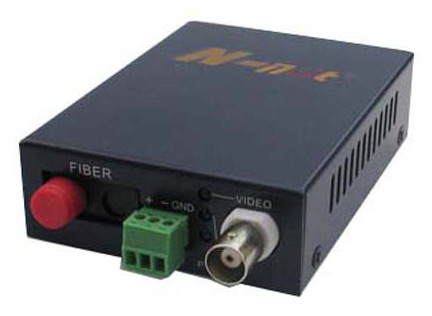

Single Channel V + D Video Optical Terminal
