Description
Membrane Switches Specifications:1) Maximum circuit rating: 35V DC, 100mA, 1W2) Contact resistance: 10 - 500Ω (varied from the trace length and material)3) Insulation resistance: 100MΩ at 100V4) Dielectric withstand: 250V RMS (50 - 60Hz per min)5) Contact bounce: 5ms or less6) Actuation force:a) Flat type 60 - 300g (2 - 10oz.)b) Tactile type: 150 - 400g (6 - 14oz.)7) Switch stroke:a) Flat type 0.1 - 0.5mmb) Tactile type: 0.6 - 1.5mm8) Life expectancy:a) Flat type: 5,000,000 closures or moreb) Tactile type: 1,000,000 closures or more9) Surface hardness: 3H or more10) Operating temperature: -40 ~ +80°C11) Storage temperature: -40 ~ +85°C12) Humidity: 90 - 95% (40°C) for 240 hours Add to Basket
Web address
Other goods of this manufacturer :
Silicon Rubber
Specifications:1) Actuation force: 20 - 500g2) Key stroke: 0 - 5mm3) Contact resistance: less than 200Ω4) Contact rating: 30VDC, 30mA5) Temperature rating: -40 ~ +250°C6) Operation temperatu
Silicon Rubber
Specifications:1) Actuation force: 20 - 500g2) Key stroke: 0 - 5mm3) Contact resistance: less than 200Ω4) Contact rating: 30VDC, 30mA5) Temperature rating: -40 ~ +250°C6) Operation temperatu
Silicon Rubber Parts
Specifications:1) Actuation force: 20 - 500g2) Key stroke: 0 - 5mm3) Contact resistance: less than 200Ω4) Contact rating: 30VDC, 30mA5) Temperature rating: -40 ~ +250°C6) Operation temperatu
Silicon Rubber Parts
Specifications:1) Actuation force: 20 - 500g2) Key stroke: 0 - 5mm3) Contact resistance: less than 200Ω4) Contact rating: 30VDC, 30mA5) Temperature rating: -40 ~ +250°C6) Operation temperatu

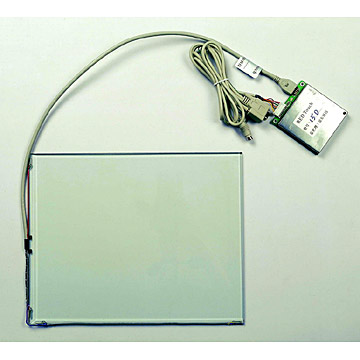

Touch Screen
