Producer information

Company:
Guangzhou Kay-EE Membrane Keyboard Switch Co., Ltd.

Address:
Building E, Electronic (Digital) Base, 9 Huaxi Road, Fangcun District, Guangzhou, Guangdong, China (Mainland) Zip: 510380 &n

Phone:
+86-20-81406618

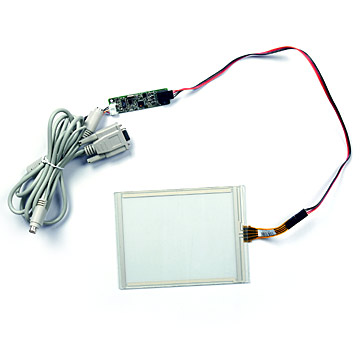

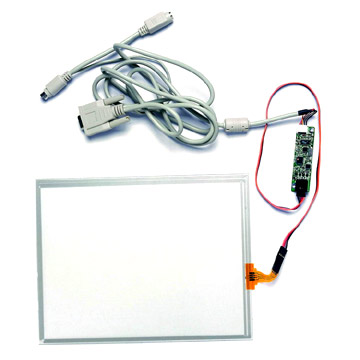

Touch Screen

Specifications:1) Maximum circuit rating: 5V DC, 1mA2) Insulation resistance: 20mΩ or more at 25V DC3) Dielectric withstand: 250V RMS (50 - 60Hz 1min)4) Contact bounce: 30ms or less5) Actuation force: 10 - 100g6) Life expectancy: 5,000,000 closures and up using a silicone style7) Surface hardness: 3H or more8) Operating temperature: -10 ~ +60°C9) Storage temperature: -20 ~ +70°C10) Humidity: 90 - 95% (40°C) for 240h11) Light transmission: 75 - 90%

Add to Basket

Web address

Other goods of this manufacturer :

Touch Screen
	Specifications:1) Maximum circuit rating: 5V DC, 1mA2) Insulation resistance: 20mΩ or more at 25V DC3) Dielectric withstand: 250V RMS (50 - 60Hz 1min)4) Contact bounce: 30ms or less5) Actuation

Touch Screen
	Specifications:1) Maximum circuit rating: 5V DC, 1mA2) Insulation resistance: 20mΩ or more at 25V DC3) Dielectric withstand: 250V RMS (50 - 60Hz 1min)4) Contact bounce: 30ms or less5) Actuation

Membrane Switches
	Specifications:1) Maximum circuit rating: 35V DC, 100mA, 1W2) Contact resistance: 10 - 500Ω (varied from the trace length and material)3) Insulation resistance: 100MΩ at 100V4) Dielectric wi

Membrane Switches
	Specifications:1) Maximum circuit rating: 35V DC, 100mA, 1W2) Contact resistance: 10 - 500Ω (varied from the trace length and material)3) Insulation resistance: 100mΩ at 100V4) Dielectric

Touch Screen
	Specifications:1) Maximum circuit rating: 5V DC, 1mA2) Insulation resistance: 20mΩ or more at 25V DC3) Dielectric withstand: 250V RMS (50 - 60Hz 1min)4) Contact bounce: 30ms or less5) Actuation f

Touch Screen
	Specifications:1) Maximum circuit rating: 5V DC, 1mA2) Insulation resistance: 20mΩ or more at 25V DC3) Dielectric withstand: 250V RMS (50 - 60Hz 1min)4) Contact bounce: 30ms or less5) Actuation f

Assembly
	We can assemble membrane switch, FPC, silicon rubber, EL and touch screen together according to customers` requirements.

Assembly
	We can assemble membrane switch, FPC, silicon rubber, EL and touch screen together according to customers` requirements.

Membrane Switch
	Specifications:1) Maximum circuit rating: 35V DC, 100mA, 1W2) Contact resistance: 10 - 500Ω (varied from the trace length and material)3) Insulation resistance: 100MΩ at 100V4) Dielectric
