Film Extruder

The extruder machine`s cylinder and screw adopt 38CrMaAIA material, is finely machining, nitrogen treatment, high rigidity, good anti-corrosive performance and durable. Equipped with auto-temp-control and cylinder air blower to maintain the plasticizing temperature.Specifications:1) Model: SJ-45 450mm max. folded dia., 0.01-0.05 thickness, 45mm dia. of screw, L/D 28:1, 7.5kW main motor, 30kg/h max. extrusion.2) Model: SJ-50 600mm max. folded dia., 0.01-0.05 thickness, 50mm dia. of screw, L/D 28:1, 11kW main motor, 40kg/h max. extrusion.3) Model: SJ-55 800mm max. folded dia., 0.01-0.05 thickness, 55mm dia. of screw, L/D 28:1, 15kW main motor, 45kg/h max. extrusion.4) Model: SJ-65 1000mm max. folded dia., 0.01-0.06 thickness, 65mm dia. of screw, L/D 28:1, 22kW main motor, 60kg/h max. extrusion.5) Model: SJ-65x28 MZFK-1500 1250mm max. folded dia., 0.01-0.06 thickness, 65mm dia. of screw, L/D 28:1, 30kW main motor, 60kg/h max. extrusion.6) Model: SJ75 2000mm max. folded dia., 0.01-0.10 thickness, 75mm dia. of screw, L/D 28:1, 37kw main motor, 80kg/h max. extrusion.If feel interested in our products, please contact us soon. You may talk with us by MSN or Skype.

Add to Basket

Web address

Other goods of this manufacturer :

Film Extruder
	The extruder machine`s cylinder and screw adopt 38CrMaAIA material, is finely machining, nitrogen treatment, high rigidity, good anti-corrosive performance and durable. Equipped with auto-temp-control

Fully Auto Vest Shape Bag (In Lot) Making Machine
	Features:1) Controlled by a microprocessor (servo system), and equipped with pulse-motor,SICK mark sensor, inverter for speed regulation, web automatic feeder,automatictemperature controller, and bag

Fully Auto Vest Shape Bag (In Lot) Making Machine
	Product Name: Fully Auto Vest Shape Bag (In Lot) Making MachineModel Number: ZBG-400BPlace of Origin: ChinaFeatures:1) Controlled by a microprocessor (servo system), and equipped with pulse-motor,SICK

Heating Bottom Sealing Machine
	Features:1) Controlled by PLC2) Can finish sealing at once time

Heating Bottom Sealing Machine
	Product Name: Heating Bottom Sealing MachinePlace of Origin: ChinaFeatures:1) Controlled by PLC2) Can finish sealing at once time

High-Speed Heat-Sealing and Cutting Bag Making Machine
	Features:1) Designed to seal and cut bags that are made from heat plastic films (includingBOPP, HDPP, and PP), and can shape various irregular bags or side sealing R-openbags automatically and continu

High-Speed Heat-Sealing and Cutting Bag Making Machine
	Product Name: High-Speed Heat-Sealing and Cutting Bag Making MachineModel Number: RQD-500, 600, 700, 800Place of Origin: ChinaFeatures:1) Designed to seal and cut bags that are made from heat plastic

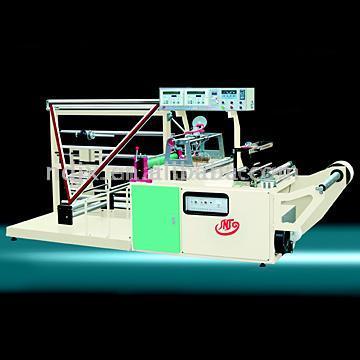

High-Speed Heat-Side Sealing Machine
	Features:1) Designed to seal sides of (PP, HD (LD), PE) plastic film bags, equipped with automatic deviation rectifier, automatic temperature controller, speed regulationinverter, counter and rewinder

High-Speed Heat-Side Sealing Machine
	Product Name: High-Speed Heat-Side Sealing MachineModel Number: FD (250-700)Place of Origin: ChinaFeatures:1) Designed to seal sides of (PP, HD (LD), PE) plastic film bags, equipped with automatic dev
