8.4" DVB-T LCD TV (8,4 "DVB-T ЖК-телевизор)

Zoom in

Producer information

Company:
King View Industrial Ltd.

Address:
8/F, Building B-2, Xiufeng Industrial Zone, Buji Town, Shenzhen City, Guangdong Province. China

Phone:
+86-755-28557847 +28557515

8.4" DVB-T LCD TV

Tune:1) Input bit rate: 4.98-31.67MB/s (8MHz bandwidth)2) Demodulation: COFDM3) Modulation: QPSK,16-QAM, 64-QAM4) Bandwidth: 7MHz, 8MHz5) FFT pattern: 2k, 6k, 8k6) Monitoring space: 1/4, 1/8, 1/16, 1/32, off7) FEC: 1/2, 2/3, 3/4, 5/6, 7/8Input:1) Input frequency: VHF 177.5MHz~226.5MHz, UHF 474MHz~858MHz2) Input level: -20~65dBmV3) Input impedance: 75Ω4) MPEG II decode (decode standard): MPEG2, ISO/IEC 13818 MPEG25) Input discharge: max. 60MB/s6) Video output proportion: 4:3, 16:97) Video resolution: 720 x 576 (PAL); 720 x 480 (NTSC)8) Video output: video9) Sound standard of decode: MPEGI layer 1,2 musical10) Sound output mode: stereo, double sound track (left and right)11) Sampling frequency: 32, 44.1, 48MHzVideo output:1) Output resistance: 75Ω, needing AV conversion cord2) Output voltage: 1.0+20mVp-p3) Frequency response: +0.5dB (4.8MHz)4) Deferential coefficient plus:5) Deferential coefficient physic:6) Color brightness delay:Audio output:1) Output resistance: 6802) Output voltage: -15dB3) Frequency response: +0.5dB (20Hz-18KHz)4) Sound SNR: >70dB5) Left right voltage difference:6) Reflect waste: 6dB max.

Add to Basket

Web address

Other goods of this manufacturer :

15" 17" 19" 20" Dvb-T /Analogue Lcd Tv
	15" 17" 19" 20" DVB-T /ANALOGUE LCD TVDisplay Resolution 1024(H) x 768(V)Number of Pixel 0.297(H)x0.297(V)Brightness 250 cd/m?Back Light: Built-in 2XCCFLContrastness: 350:1LCD Profile Ratio: 4:3Operat

15" LCD TV & DVD Combo
	Name:15" LCD TV& DVD playerModel no.: Kv-td1500Specification:Display resolution 1024(h) x 768(v)Number of pixel 0.297(h)x0.297(v)Brightness 250 CD/m?Back light: Built-in 2xccflContrastness:350:1LCD pr

20"lcd Tv
	Sell 20" lcd tv . Good design , Good price , Good serviceDisplay Resolution: 800(H) x 600(V)Number of Pixel: 0.297(H)x0.297(V)Brightness: 550cd/m?Back Light: Built-in 6XCCFLContrastness: 500:1LCD Prof

LCD TV & DVD Combo
	Name:15" LCD TV& DVD playerModel no.: Kv-td1501Specification:Display resolution 1024(h) x 768(v)Number of pixel 0.297(h)x0.297(v)Brightness 250 CD/m?Back light: Built-in 2xccflContrastness:350:1LCD pr

10.4" Roof Mount TV/Monitor
	Display Resolution: 640(H) x 480(V)Panel :10.4" NEW PANELNumber of Pixel :0.107(H) x 0.372(V)Brightness : 300cd/m?Back Light : 200:1LCD Profile Ratio : 4:3Operation Voltage :DC +12VPower Input Consump

DVB-T Digital LCD TV
	Supply 8" AND 8.4" DVB-T LCD TVTechnical ParametersTune:Input Bit rate:4.98-31.67Mbit/s (8MHZ Bandwidth)Demodulation : COFDMModulation:QPSK,16-QAM,64-QAMBandwidth: 7MHz ,or 8 MHzFFT pattern:

10.4" 12.1" DVB-T and Analogue LCD TV
	Features:1) Model no.: KV-TP100A/ KV-TP120A2) Monitor type 10.4" / 12.1" DVB-T and analogue LCD TV3) Display resolution 800 (H) x 600 (V)4) Panel: recycle panel5) Number of pixel: 0.255 dots6) Brightn

10.4" Roof Mount LCD TV
	Specifications:1) Display resolution: 640(H) x 480(V)2) Panel: 10.4" new panel3) Number of pixel: 0.107(H) x 0.372(V)4) Brightness: 300CD/sqm, back light: 200 : 15) LCD profile ratio: 4: 36) Operation

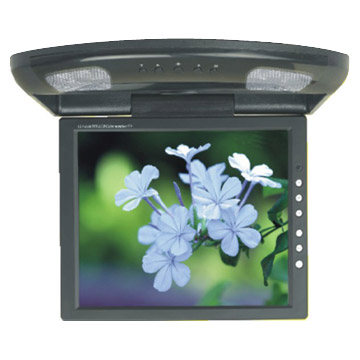

12.1" Roof Mount LCD TV Set
	Features:1) Panel: 12.1" recycle panel2) Number of pixel: 0.107 (H) x 0.372 (V)3) Brightness: 300CD/sqm4) Back Light: 200 : 15) LCD profile ratio: 4 : 36) Operation voltage: DC 12V7) Power input consu
