Product Name: Soft Bag and Spout Automatic Sealing MachineModel Number: TC-HZ30APlace of Origin: ChinaUsage:The machine is used to weld a spout to a soft bag. The machine can finish the whole process automatically. The process includes bag supply, bag feeding, four times hot sealing, once cold sealing and pressing, and unloading. It is suitable for packaging drinks, jelly and flavorings.Main technique features:1) Tube fitting and sealing with self-standing bags and penguin style bags2) Servo drive3) PID temperature control4) 19 working conditions display5) Clear display and easy operation6) Trouble alarm display and shooting7) Plastic bags lined in the special holding channel for later feeding8) Patented technologyMain technical specifications1) Bag dimensions (L x W): 100 - 180 x 80 - 105mm2) Capacity: 30pcs/min3) Power: AC 380V, 50Hz, 4.5KVA4) Compressed air: 0.5Mpa, 150NL/min5) Cooling water: 6L/min6) Dimension of the machine (L x W x H): 3,320 x 2,120 x 1,660mm7) Weight: 2,000kgTube fitting system:The tubes are sent automatically into the production line by controlled hopper and vibrating plate.First fitting and sealing system:Pick up the soft bag out of the tank, clip and open it, fit the plastic mouth and seal the joint.Automatic channel supply system:The bags are counted and lined up in the channel for later feeding. The channel supply system will automatically supply the new channels.Multi sealing system:Hot sealing and cold sealing are repeated several times and the sealing quality is guaranteed.
Features:1) Lock in range on synchronization drive tube sprocket, high location accuracy2) Precision casting square cup aluminum pedestal3) High precision coder controls the action, accurate and relia
Features:1) Lock in range on synchronization drive tube sprocket, high location accuracy2) Precision casting square cup aluminum pedestal3) High precision coder controls the action, accurate and relia
Single facer.Hydraulic base paper shelf.Core paper and surface paper adjustable preheating cylinder.Four-layer adjustable preheating cylinder.Up-pasting composite machine.Hot part and cool part comput

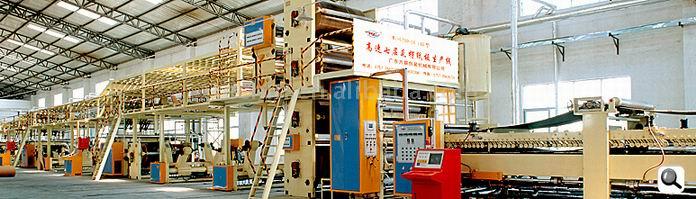

Product Name: Steam Heating Seven-Layer Corrugated Carton Production LineModel Number: TC-C200-7Place of Origin: ChinaSingle facer.Hydraulic base paper shelf.Core paper and surface paper adjustable pr
We supply most of the accessories of rotogravure printing and flexible packaging machine. We could modify your printing machine with auto color system. If you are interested in any of our products, pl
We supply most of the accessories of rotogravure printing and flexible packaging machine. We could modify your printing machine with auto color system. If you are interested in any of our products, pl
