Description
Vehicles, Spare Parts & Accessories /  Parts and Accessories for Vehicles /  Parts and Accessories for Automobile Vehicles /  Automobile Vehicle Brake System and Parts /
Producer information
Company:
Shandong Shanbo Electric Machine Group Co., Ltd.

Address:
1 Qingnian Road, Boshan, Zibo, Shandong, China (Mainland) Zip: 255200

Phone:
+86-533-4184492 +4135101 +2641999

Brake


Working conditions:1) Height above sea level: no more than 2km2) Ambient temperature: -15 - +40 Celsius degrees3) There is no explosive matter and air or conducting dust of corrodingmetal and damaging insulation in the around dielectric4) Coil voltage wave of brake does not exceed +5% and -15% of rated voltage5) Working in the dry conditionZDD-01 brakeTechnical parameters:1) Rated voltage: 12 / 24V2) Coil power: 10W3) Brake torque: 1.2NmZDD-02 brakeTechnical parameters:1) Rated voltage: 12 / 24V2) Coil power: 20W3) Brake torque: 4Nm4) Max. speed allowed: 6,000rpmZDD-06 brakeTechnical parameters:1) Rated voltage: 12 / 24V2) Coil power: 8.4W3) Brake torque: 4.5 in-lbs4) Max. speed allowed: 6,000rpmZDT-01 brakeTechnical parameters:1) Rated voltage: 12 / 24V2) Coil power: 10W3) Brake torque: 4Nm4) Max. speed allowed: 5,000rpm

Add to BasketAdd to Basket Web addressWeb address



Other goods of this manufacturer :
DC Gearmotor
 DC Gearmotor ( DC Gearmotor)
Features:1) Permanent magnet construction for low AMP draw2) Sealed gearbox with self-lubricated bronze worm gears for quietSpecifications:1) Voltage: 110V DC2) Power: 100 - 120W3) Output speed: 280 -
DC Gearmotor
 DC Gearmotor ( DC Gearmotor)
Product Name: DC GearmotorModel Number: EM80ZYW01Place of Origin: ChinaFeatures: 1) Permanent magnet construction for low AMP draw2) Sealed gearbox with self-lubricated bronze worm gears for quietSpec
DC Motor
 DC Motor ( DC Motor)
Product Name: DC MotorModel Number: EMZDY1601Place of Origin: ChinaSpecifications: 1) Voltage:12V 2) Current: 12A 3) Torque: not less than 0.105N.m 4) Speed: not less than 6000rpm
DC Motor
 DC Motor ( DC Motor)
Specifications:1) Voltage:12V2) Current: 12A3) Torque: not less than 0.105N.m4) Speed: not less than 6000rpm

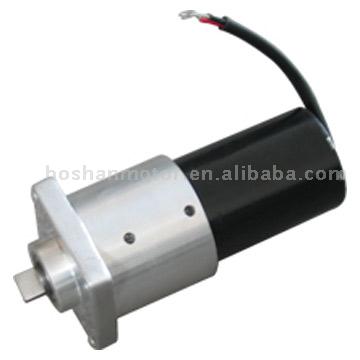

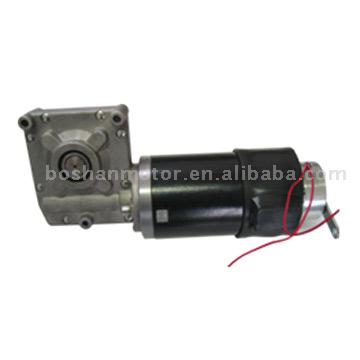

DC PM Gearmotor
 DC PM Gearmotor ( DC PM Gearmotor)
Specifications:1) Voltage: 12V DC2) Power: 175W3) Load torque: 22.5N.m4) Output speed: 75rpm5) Ratio: 1:506) Diameter of motor: 90mmInner packing:1pc/polystyrene surrounded with polyethene bagOuter pa
DC PM Gearmotor
 DC PM Gearmotor ( DC PM Gearmotor)
Features:1) Permanent magnet construction for low AMP draw2) Sealed gearbox with self-lubricated plastic worm gears for quietSpecifications:1) Voltage: 24V DC2) Load torque: 10N.m3) Output speed: 2.2r
DC PM Gearmotor
 DC PM Gearmotor ( DC PM Gearmotor)
Features:1) Permanent magnet construction for low AMP draw2) Sealed gearbox with self-lubricated plastic worm gears for quietSpecifications:1) Voltage: 12V DC2) Power: 120W3) Load torque: 8N.m4) Outpu
DC PM Gearmotor
 DC PM Gearmotor ( DC PM Gearmotor)
Features:1) Permanent magnet construction for low AMP draw2) Sealed gearbox with self-lubricated plastic worm gears for quietSpecifications:1) Voltage: 12V DC2) Rated current: 25A3) Load torque: 400"/
DC PM Gearmotor
 DC PM Gearmotor ( DC PM Gearmotor)
Features:1) Permanent magnet construction for low AMP draw2) Sealed gearbox with self-lubricated bronze worm gears for quiet
