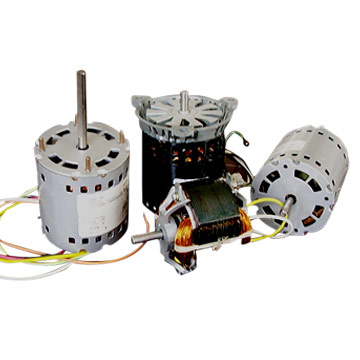

PSC Motor
Features1) Permanent split capacitor motor2) Class B insulation3) UL and CSA certification (category code: XEWR2/8)4) Comply with RoHS environmental protection instruction5) Thermal protection6) 4.9" motor diameter7) Zinc alloy die-cast end shields or steel plate end shields8) Ball bearing (NMB/NSK)9) Variety of mounting solutions such as extended mounting studs, screw holesin end shields or cushion rings10) Open ventilation11) Double or single shaft12) Length adapter and mounting kit included13) Applications: fan coil units, room air conditioners, thru the wall unitsSpecifications:1) Voltage: 115V, 208-230V2) Frequency: 60Hz3) Pole: 4p / 6p4) Rotation type: single or rev5) RPM (hi): 1,625 / 1,075 (typical value, can design to satisfy customer),single and multi speed6) Output power (hi): (4p) 1/15HP~1/3HP, (4p) 1/15HP~1/4HP7) Case length (in): N/A8) Shaft diameter (in): 1/2 (typical value, can design to satisfycustomer)9) Can design and produce customized products
