Dome Camera with IR (Купольная камера с ИК -)

Zoom in

Send Request

about this service

Producer information

Company:
Sharpvision Co., Ltd.

Address:
Factory Building 4/F, No. 4, Tangdong East Road, Tangdong Village, Tianhe, Guangzhou, Guangdong, China (Mainland)

Phone:
+86-20-85572236 +85572237 +85545366

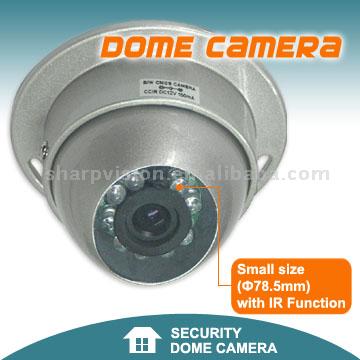

Dome Camera with IR

Specifications:1 / 4" B/W CMOS sensor1) Without audio2) Image device: OV51163) TV system: CCIR / EIA4) Effective pixels: 352 x 288 pixels / 320 x 240 pixels5) Sensing area: 3.2 x 2.5mm6) Scanning system: 2:1 interlace7) Sync. system: internal8) Resolution: 240TV lines9) Horizontal sync. frequency: 15.625kHz / 15.734kHz10) Vertical sync. frequency: 50Hz / 60Hz11) Minimum illumination: 0 Lux/F1.2 with IR12) Video output: 1.0Vp-p, 75ohm13) Gamma consumption: 0.4514) AGC: auto15) S/N ratio: better than 46dB16) White balance: auto17) Electronic shutter: 1/50 - 1/6,000 seconds18) BLC: auto19) Current consumption: 200mA20) Power supply: DC 12V21) Operating temperature: -10 - 45°C, RH 95% (max.)22) Storage temperature: -30 - 60°C, RH 95% (max.)23) Lens: f=3.6mm / F = 2.024) Lens angle: 69 degrees1/3" color CMOS sensor:1) Without audio2) Image device: OV79103) TV system: PAL / NTSC4) Effective pixels: 628 x 582 pixels / 510 x 492 pixels5) Sensing area: 5.78 x 4.19 / 4.69 x 3.54mm6) Scanning system: 2:1 interlace7) Sync. system: internal8) Resolution: 380TV lines9) Horizontal sync. frequency: 15.625kHz / 15.734kHz10) Vertical sync. frequency: 50Hz / 60Hz11) Minimum illumination: 0 Lux / F1.2 with IR12) Video output: 1.0Vp-p, 75ohm13) Gamma consumption: 0.4514) AGC: auto15) S/N ratio: better than 48dB16) White balance: auto17) Electronic shutter: 1/60 - 1/15,000 seconds18) BLC: auto19) Current consumption: 200mA20) Power supply: DC 12V21) Operating temperature: -10 - 46°C, RH 95% (max.)22) Storage temperature: -30 - 60°C, RH 95% (max.)23) Lens: f=6.0mm/3.6mm / F = 2.024) Lens angle: 69/92(N);80/110(P)1/3" B/W CCD sensor:1) Without audio2) Image device: Samsung3) TV system: CCIR/ EIA4) Effective pixels: 500 x 582 pixels / 510 x 492 pixels5) Sensing area: 4.9 x 3.7mm6) Scanning system: 2:1 interlace7) Sync. system: internal8) Resolution: 420 TV lines9) Horizontal sync. frequency: 15.625kHz / 15.734kHz10) Vertical sync. frequency: 50Hz / 60Hz11) Minimum illumination: 0 Lux/F1.2 with IR12) Video output: 1.0Vp-p, 75ohm13) Gamma consumption: 0.4514) AGC: on15) S/N ratio: better than 48dB16) White balance: auto17) Electronic shutter: 1/60 (CCIR) / 1/50 (EIA) - 1/10,000 seconds18) BLC: auto19) Current consumption: 300mA20) Power supply: DC 12V21) Operating temperature: -10 - 55°C (CCIR), or 60°C (EIA), RH 95% (max.)22) Storage temperature: -20 - 60°C, RH 95% (max.)23) Lens: f=3.6mm / F = 2.024) Lens angle: 92 degrees1/4" color CCD sensor:1) Without audio2) Image device: Sharp3) TV system: PAL / NTSC4) Effective pixels: 512 x 582 pixels / 512 x 492 pixels5) Sensing area: 3.6mm x 2.7mm6) Scanning system: 2:1 interlace7) Sync. system: internal8) Resolution: 420 TV lines9) Minimum illumination: 0 Lux / F1.2 with IR10) Horizontal sync. frequency: 15.625kHz / 15.734kHz11) Vertical sync. frequency: 50Hz / 60Hz12) Video output: 1.0Vp-p, 75ohm13) Gamma consumption: 0.4514) AGC: auto15) S/N ratio: better than 48dB16) White balance: auto17) Electronic shutter: 1/60(NTSC) / 1/50(PAL) - 1/10,000 seconds18) BLC: auto19) Current consumption: max. 300mA20) Power supply: DC 12V21) Operating temperature: -20 - 70°C , RH95% (max.)22) Storage temperature: -40 - 85°C, RH95% (max.)23) Lens: f=3.6mm / F = 2.024) Lens angle: 69 degrees

Add to Basket

Web address

Other goods of this manufacturer :

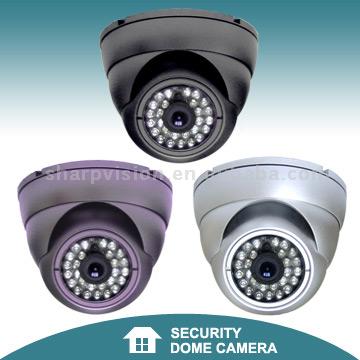

Dome Camera with IR
	Specifications:1 / 4" B/W CMOS sensor1) Without audio2) Image device: OV51163) TV system: CCIR / EIA4) Effective pixels: 352 x 288 pixels / 320 x 240 pixels5) Sensing area: 3.2 x 2.5mm6) Scanning syst

Dome Cameras with IR
	Specifications:1) Without audio2) Image device: sharp3) TV system: PAL / NTSC4) Effective pixels: 512 x 582 pixels / 512 x 492 pixels5) Sensing area: 3.6mm x 2.7mm6) Scanning system: 2:1 interlace7) S

Dome Cameras with IR
	Features:1) Waterproof and anti-vandal housing2) Weather resistant3) Compact profile4) 24 IR LEDs5) IR Distance: approx. 20m6) High resolutionSpecifications:1/4" B/W CMOS sensor:1) Without audio2) Ima

Dome Cameras with IR
	1 / 4" B/W CMOS sensor specifications:Without audioImage device: OV5116TV system: CCIR / EIAEffective pixels: 352 x 288 pixels / 320 x 240 pixelsSensing area: 3.2mm x 2.5mmScanning system: 2:1 interla

Dome Cameras with IR
	Specifications:1) Without audio2) Image device: sharp3) TV system: PAL / NTSC4) Effective pixels: 512 x 582 pixels / 512 x 492 pixels5) Sensing area: 3.6mm x 2.7mm6) Scanning system: 2:1 interlace7) S

Dome Cameras with IR
	Product Name: Dome Cameras with IRModel Number: CD-062MPlace of Origin: ChinaFeatures:1) Waterproof and anti-vandal housing2) Weather resistant3) Compact profile4) 24 IR LEDs5) IR Distance: approx. 20

Dome Cameras with IR
	1 / 4" B/W CMOS sensor specifications:Without audioImage device: OV5116TV system: CCIR / EIAEffective pixels: 352 x 288 pixels / 320 x 240 pixelsSensing area: 3.2mm x 2.5mmScanning system: 2:1 interla

IR Dome Camera
	Product Name: IR Dome CameraModel Number: CD-059Place of Origin: China1/3" color CMOS sensor specifications:Without audio and IRImage device: OV7910TV system: PAL / NTSCEffective pixels: 628 x 582 pix

IR Dome Camera
	Features:Compact profile surveillance dome camera for indoor applicationsHard ceiling or suspended ceiling applicationsHigh resolution
