Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge

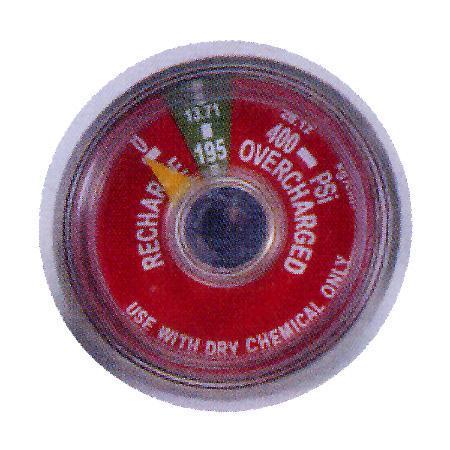

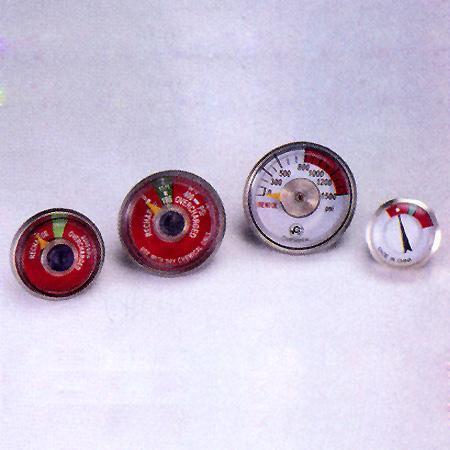

The gauge is designed to monitor pressure which stay inside of the fire extinguisher container, oxygen or nitrogen steel container. The element uses capsule or spiral trbe which operates upon expansion and shrinkage, the pointer goes where it should go under its function. As the accuracy 4% is not high strictly, new design can be made on request. The gauges are installed on fire extinguisher container or valve fitting. SPECIFICATIONS: Norminal size : 23mm / 27 / 35 24mm / 30 / 36 /40 Measuring range : 60 psi to 5000 psi Casing & Bezel : SUS 304 or brass with nickel plating Window : Polycarbonate window Dial : Aluminum, white background, black graduations and lettering Capsule : Brass. Spiral tube : Brass SUS 304. Connection : Brass (or SUS 304) 1/8``, 1/4`` Pointer : Brass with painted Temperature range : -20C to +60C
The plastic case utility gauges are weather and rust resistance, it`s ABS case and one piece plastic window are resistant to many chemicals and industrial plant atmosphere. However, these gauges are
The gauge is designed to monitor pressure which stay inside of the fire extinguisher container, oxygen or nitrogen steel container. The element uses capsule or spiral trbe which operates upon expansi
The contractor gauge is designed for a wide variety of industrial application, but especially is suitable for heating and air condition systems. The 300 series stainless steel housing provides good c
The gauge is designed to monitor pressure which stay inside of the fire extinguisher container, oxygen or nitrogen steel container. The element uses capsule or spiral trbe which operates upon expansi
The contractor gauge is designed for a wide variety of industrial application, but especially is suitable for heating and air condition systems. The 300 series stainless steel housing provides good c
The gauge is designed to monitor pressure which stay inside of the fire extinguisher container, oxygen or nitrogen steel container. The element uses capsule or spiral trbe which operates upon expansi
The contractor gauge is designed for a wide variety of industrial application, but especially is suitable for heating and air condition systems. The 300 series stainless steel housing provides good c
The gauge is designed to monitor pressure which stay inside of the fire extinguisher container, oxygen or nitrogen steel container. The element uses capsule or spiral trbe which operates upon expansi
The P100 series industrial use pressure gauges are designed for general service conditions where the working medium is non-corrosive to brass or phosphor bronze, have a high viscosity or are liable t
