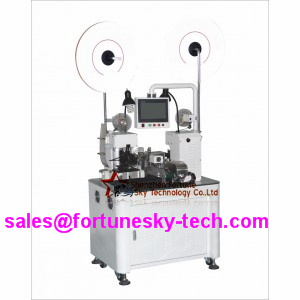

Automatic cut-to-length strip flat ribbon cable terminal crimping machine
Automatic cut-to-length strip flat ribbon cable terminal crimping machineProduct Features:1. Mainly is used for crimping communication terminals on PH,XH,EH,ZH color flat ribbon cables, terminal on SCN, SM, VH, DUPONT ribbon cables. 2. Automatic production ensures the fixed length cutting,precise splitting stripping,balanced crimping,making the wiring harness terminal crimping neat, good consistency and quality of the products is very stable.3. The machine adopts imported servo motor drive, regardless of how much the quantity of cable harness, terminal precise pressure control, to ensure that the wire harness, cable guide positioning performance through more accurate truly achieve the effect of stability, precision, high speed, low noise.4. Fully automated production,saving human labor: from feeding flat ribbon cable for fixed length cutting, stripping and separating, crimp double (single) terminals, all the process is finished automatically without manual participation.5. High efficiency : the pressure of the 15K terminal per hour, the device can work 24hours.6. Electric adjust blade, length, wire separated length, stripping length and etd, easy operation, stable, high efficient.Technical Parameters ModelBJ-P806FunctionFully automatic flat ribbon cable double ends crimpingProcessing wire rangeAWG26-AWG18 6P-12P various flat ribbon cablesProduction Capacity2000-4000 wires per hour (decided by wire gauge)Cutting Length90mm-9999mm Cutting AccuracyMute hybrid stepping motor each step 0.1mmStripping Length0.01-8mmCrimping Force19600N (2T)Detection FunctionDetection for wire missing,terminal missing,crimping, air, voltagePowerAC 220V 50/60Hz (single phase)Body Size1000x750x1500mm (excl. projections)Body Weight550kgCutting tool materialSweden ASP60 powder high speed steel
