PURROS® Pneumatic Drill Units,PR3P-1310 Electric Drilling Heads Supplier

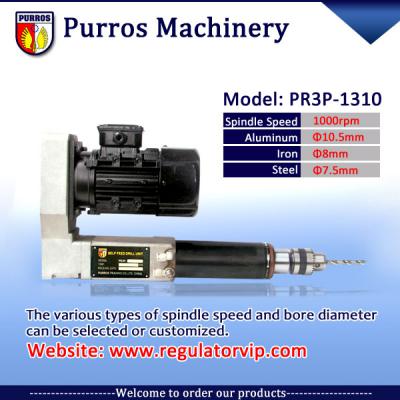

Ⅰ. PURROS® Electro Pneumatic Drilling Units ParametersMode: PR3P-1310No-load speed: 1000R/MDrilling diameter: Aluminum: Φ10.5MM / Cast iron: Φ8MM / Steel: Φ7.5MMSpindle stroke: 80-120MMCutting feed stroke: 0-60MMMotor power: 0.55KW-0.75KWFeed thrust: 1200NAir consumption: 3-6LⅡ. PURROS® Electro Pneumatic Drilling Units Characteristics 1. High-precisionCore technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely. 2. High rigidity Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.3. High performanceA unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.Ⅲ. Products can be equipped with Electro Pneumatic Drilling Units 1. Hydraulic damper (PURROS® Hydro Speed Regulator)Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.2. Multi-axis machining head (PURROS® Multiple Spindle Heads)Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.3. Desktop support (PURROS® Universal Stand)Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.4. Combination machineAutomatic drilling can be realized as it can be installed to the non-standard combination machine.5. Single desktop automatic bench drillHigh-efficiency automatic drilling equipment can be formed if equipped with Electro Pneumatic Drilling Units, desktop support and circuitry system together. Only one button can finish the whole drilling work. Our products are mainly exporting to Argentina, Indonesia, Hungary, Switzerland, Britain, Sweden, Ukraine, Croatia, Austria, Poland, Canada, Bulgarian, Ireland, Thailand, France, India, Greece, etc
Our company Professional manufactured Multi-Drill Head, Power Head Drilling, Self Feed Drilling Heads, Hydro Speed Regulator, Hydraulic Dampers, A Wind Power Type Drill, Multi Spindle Head, Universal
To adopt 0.4kw motor; It is applicable to high-speed drill processing.Please select product models you required according to shape,material,harness,bit diameter and rotational speed(cutting speed),a
Model: PRMS-96Type:FixedDrilling Capacity: CustomizedTapping Capacity: CustomizedMinimum Range: CustomizedMaximum Range: CustomizedMulti Spindle Drill Heads, which commonly known as porous drill, mult
We mainly produce automatic gear tapping machine and multi-axis gear mode tapping machine, which is suitable for various metal parts machining, especially used for tapping of metal, die-casting, stamp
Model: PRMS-228Type:AdjustableDrilling Capacity: Φ2-Φ7.5Tapping Capacity: M2-M8Minimum Range:Φ28mmMaximum Range:Φ120mmMulti spindle heads are well designed for almost all types of dril
Model: PRMS-94Type:FixedDrilling Capacity: CustomizedTapping Capacity: CustomizedMinimum Range: CustomizedMaximum Range: CustomizedMulti Spindle Drill Heads, which commonly known as porous drill, mult
Model: PRMS-2Type:AdjustableDrilling Capacity: Φ2-Φ7.5Tapping Capacity: M2-M8Minimum Range:Φ23mmMaximum Range:Φ91mmMulti spindle heads are well designed for almost all types of drillin
