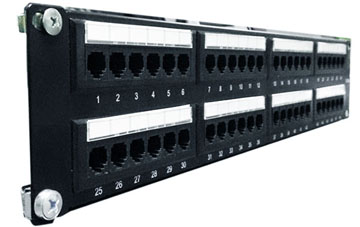

Cat.6 UTP Patch Panel 48 Ports Dual IDC PCB Type
Main Description:
1. 12/18/24/48 ports patch panel, Cat.6 UTP type. The structure of each port is same which guarantees that the performance is always consistent.
2. The cable management is combined in this patch panel. All kinds of cables with different dimensions can be fixed in.
3. Standards: ISO/IEC 11801:2000 CLASS E and ANSI/TIA/EIA/568B.2-1 Cat.6 standard,T568A punching sequence and T568B punching sequence are both compatible.Fit for horizontal distribution.
4. Connecting: FCC port for Cat.6 UTP patch cord and IDC for horizontal distribution cables.
5. Compatibility: Compatible for UTP Cat.6 or Cat.5e, Cat.5 general cable distribution systems.
6. IDC: 110 type or LSA type for your choice.
Technique Characteristics:
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell for the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor bronze pins.
3. Fit for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.
4. Cabling sequence: T568A & B.
5. Punching tool: Standard 110 tool for 110 IDC, Standard 110 tool or LSA tool for dual IDC.
6. Testing condition of transmitting capability: 250MHz
Main Description:
1. Keystone Jack, Cat.6 Class E, UTP Type, 180°punching direction.
2. A compact & ingenious designing, punching sequence direction marked,provides a correct & quick guide for pu
1. 180 degree tooless unshielded KJ. It is designed for indoor network and data center connection.
2. The structure of the Keystone Jack is compact and tooless. This design is based on
contemp
Main Description:
1. Shielded KJ. The products are used in the equipment rooms & work area as
communication connectors of the intelligent buildings.
2. The product can resists the electro mag
Main Description :
1. Keystone Jack, CAT 6A, UTP Type, 180 degree punching direction.
2. A compact & ingenious designing, with the punching sequence direction marked, thus provides a correct and qui
Features:
- Shielded RJ45 keystone Cat5e jack with 110 punch style connectors
- Standard 110 IDC style termination on the back allowing for quick termination
- 90-degree termination allows
Rated Temperature: 60℃ or 75℃
Shielded twisted pairs: 4P+Mylar+D+AL
Impedance:100±15% at 1~100MHz
Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL 444
Print Legend: CM or C
