RJ45 connector

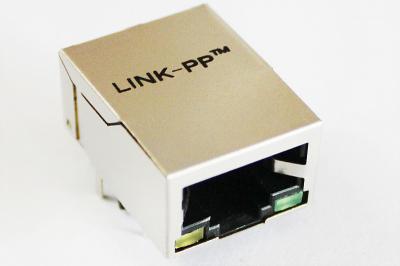

Single Port Metal IEEE RJ45 , Right Angle Switch RJ45 Connector1.1X1 Tab-down RJ45 Jack2.10 / 100M RJ 45 JACK3.Right angle modular rj45 jack4.Application: HUB, PC card, SwitchDescription:1X1 Tab-down 10/100M RJ45 connector with/without leds, length 21.30mm1. Product Type Features: 1) Product Type = Connector 2) Jack Type = RJ45 3) Profile = Standard 4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)2. Mechanical Attachment: 1) Jack Configuration = 1 x 13. Electrical Characteristics: 1) Shielded = Yes4. Termination Related Features: 1) EMI Finger - Bottom = Without 2) Termination Method = Solder5. Body Related Features: 1) Port Configuration = Single/Multi 2) EMI Fingers -Top and Sides = With/ Without 3) Latch Orientation = Standard - Latch Down 4) PCB Tail Length6. Contact Related Features: 1) Preloaded = Yes 2) Contact Termination Type = Through Hole/Surface Mount7. Housing Related Features: 1) Connector Style = Jack8. Industry Standards: 1) RoHS/ELV Compliance = RoHS compliant, ELV compliant 2) Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C 3) RoHS/ELV Compliance History = Always was RoHS compliant9. Identification Marking: 1) Left LED Color (Position #1) = Green - 250 ohm resistor 2) Right LED Color (Position #2) = Green - 250 ohm resistor10. Conditions for Usage: 1) Applies To = Printed Circuit Board 2) Environmental Conditions = Office / Premises 3) Operating Temperature (°C ) = 0 - 70/-40 - +85Applications:Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modemCompetitive Advantage:16 years production experience,1100 staff,100% testFlexible delivery time
