2013 New 500W Wind Turbine Generator

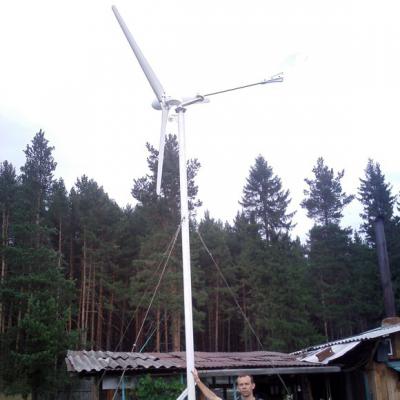

Hummer 500W Wind Turbine Generator
Hummer 500W Wind Turbine Generator Structure
Hummer manufactures and offers advanced 500W Wind Turbine Generator specifically designed for residential
houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are
third party certified and during the past 10 years, 500W Wind Turbine Generator have been exported
to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain
etc. For more information on 500W Wind Turbine Generator such as users manuals, data sheet, PDF
documents, certifications please email us sales@allwindturbine.com or call 086 551 65314300
Hummer 500W Wind Turbine Generator curve
H2.7-500W Wind Turbine Generator specifications
Configuration
3 Blades, Horizontal axis, upwind
Rotor Diameter
2.7m
Rated Power
500W at 7m/s
Maximum Output Power
1 kW at 11m/s
Battery Bank Voltage
24 Vdc
System Output Voltage
110/220 Vac
Cut-in Wind Vpeed
3 m/s
Working Wind Speed
3-25 m/s
Survival Wind Speed
50 m/s
Generator Efficiency
>0.78
Wind Energy Utilizing Ratio
0.48 Cp
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight (kg)
6.5 kg
Gearbox
None, Direct drive, front generator design
Blade Material
Fiberglass reinforced composite
Over Speed Regulation
Passive furling tail design
Shutting Down Method
Manual & Automatic electromagnetism Braking
How 500W Wind Turbine Generator works
