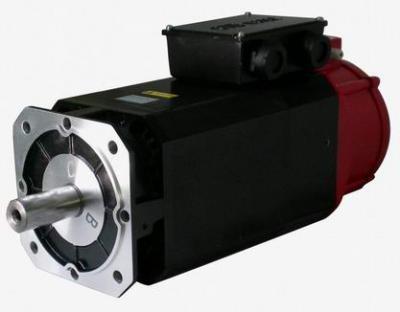

Spindle Motor Description for CTB Series: CTB series spindle motor is leading international standards of the new AC induction servo spindle motor. For the compact configuration, first-class performance, high efficiency and good cost performance, widely used in machinery manufacturing in various fields, such as CNC machine tools, woodworking machinery, textile machinery, printing equipment, dyeing equipment, paper making equipment. The product complies with the relevant national product technology and IEC, CE standards. Standard control function for spindle: 1. Low-speed and large torque cutting 2. High-speed constant power cutting 3. Zero-speed spindle lock 4. Orient stop control 5. C-axis function, rigid tapping Built-in Speed magnetic sensors 1. Encoder Lines: 1024P, 2500P, 6000P 2. Output: Square wave, sine wave 3. To achieve speed, location of closed-loop 4. High reliability and low failure rate 5. Increase dynamic balance of motor Specification: 1. Power range: 1.1-132kW 2. The maximum speed: 15000rpm 3. Rated voltage: 380V/330V 4. Rated frequency: 33.3/50/66.7/100Hz 5. Poles: 4 poles 6. Working hours: Continuous (S1) 7. Insulation levels: F 8. Insulation resistable voltage: AC1800V 9. Vibration leaves: R. S 10. Ambient temperature: -15---45 centigrade degree 11. Ambient humidity: Below 95%RH 12. Installation: B3/B5/B35 13. Thermal release: Forced air cooling 14. Noise: Less than 70dB
Spindle Servo Driver Description:GS SERIES SERVO DRIVER realized the full closed loop control of induction motor, centralizing on speed control, position control and torque control. The embed progr
CNC Controller for Lathe--130iTc: *Control axis: 2 axes *linkage axis: X, Z axis *32 bits 200MHz ARM industrial processor *32MB user memory * Resolution is 800 x 480; 7 inch TFT LCD display * Real-tim
AK30 Series NC turret is an important accessory for NC lathe and especially applicable for all-pervading NC lathe, It is designed to hold several tools and automatically index. Thus automation and h
NC Tool turret Description: Model LD4B series vertical electric tool carriage adopts the working principle of worm wheel and worm drive, advanced the fluted disc engagement and fastening. It feature
AC Inverter Description: E1000 series of AC drives is new product. By blocking design, the system function is enriched and built-in EMI filter is optional, advanced EMC design is adopted. The produc
