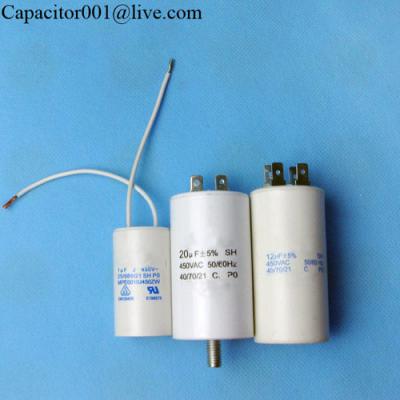

Washer Capacitor
Washer Capacitor1.Shell: ABS, polypropylene, aluminum 2. Characteristics and Uses: The product has good stability, impact resistance current, overload and strong, low loss, high insulation resistance, long life rated, self-healing performance, built-in flame-retardant epoxy resin filling safe and reliable, capacitor leakage and liquid materials, nontoxic, environmentally and so on. Mainly used in refrigerators, air conditioners, motors, pumps, generators, washing machines, household appliances, electronic products and so on. 3. Technical parameters: Capacity range: 0.5μF ~ 70μF Capacity Deviation: ± 5%, or by customer requirements. Rated voltage: 125V ~ 500VAC, 50/60Hz Operating temperature range: -25 ℃ ~ +70 ℃ Dissipation factor: ≤ 0.003 (20 ℃ .50/60Hz) Resistance between terminal voltage: AC ≥ 1.75Un 5S no breakdown Resistance between terminal voltage and the shell: AC ≥ 2000V 10S no breakdown Insulation resistance: between terminations Rj · C ≥ 3000MΩ.μF; shell terminal and inter-Rj ≥ 1000MΩ Department Implementation of the standards: GB/T3667.1-2005 IEC60252-1: 2001. Running MikeRunning Electronics Co., Ltd. ADD:No.8 Building,Electrical and Mechanical Industrial Park,Hi-Tech Park,Hefei,Anhui,ChinaTel: 0086 551 5808812Fax: 0086 551 5808813Email:capacitor001@ymail.comMSN:capacitor001@live.comSkype:capacitor058http://www.running-capacitor.com
