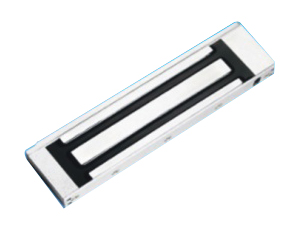

General Information for Electro Magnetic Lock Electromagnetic Lock offered by us utilizes the magnetic forces to maintain a powerful bond among a frame-mounted magnet and door-mounted armature. Our range is highly durable and is available with 180kg holding force. These are extensively used in offices, buildings, banks, financial institutions and other places. We also offer customization facility in order to meet the diverse requirements of our clients. Features Fail-safe: unlocks when power is removed Easy installation: suitable for both new and retrofit usage High holding force: refer to the technical data overleaf Self-alignment: armature plate pivots to accommodate door drop Silent operation: no humming or buzzing Dual voltage: site selectable 12 or 24 Vdc Monitoring: Reed Switch monitoring on all models. Technical Parameter Holding force: 180kg Operating voltage: 12VDC Operating current: 0.35A Specification: 173x41x23.5mm Type: Fail safe Specification Statement The Single Series Electromagnetic Lock should be constructed in an aluminum case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. In some cases the magnet armature plate pivots to accommodate door drop. The lock needs to be equipped with "smart electronics" that have zero residual magnetism, (instantaneous release). This is crucial for correct operation.
Exit Button Exit button Introduction Induction switch type 86 aluminum alloy panel Suitable for all kinds of Locks The Best Choice for Access Control &nb
Electric Bolt Lock The lock is specially designed for voltage fluctuations, using power on to lock, power off to unlock,the Static Current is only 0.15A, belong
General Information of Coded Lock Unique whole slip cover design demonstrates nobleness Touch password and inductive card are rolled up into one NO/NC model available The free intertransition bet
General Information door closer A door closer is a mechanical device that closes a door, in general after someone opens it, or after it was automatically opened. Choosing a door closer can inv
Electric Control Lock It can work with door closer and intercom system; lock automatically, no noise for opening or closing the door. It has two card readers: Internal reader,
