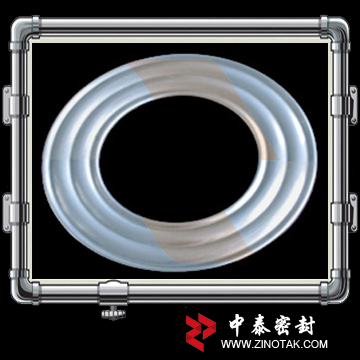

Description: Double Jacketed Gasket is made from graphite, ceramic, non-asbestos etc. filler covered with thin metal jacket, such as stainless steel, carbon steel, copper etc. By their sealing efficiently, provide outstanding resilience, while the metal jacket guarantees excellent sealing and protects the filler against pressure conditions, fluctuating temperatures and corrosion. ZT-700J Double Jacketed Plain Gasket ZT-700DC Double Jacketed corrugated Gasket ZT-700 DS with Special Shape APPLICATION: It is particularly suitable for sealing flat surfaces of heat exchanges, gas pipes, cast iron flanges, cylinder heads of engines as well as for boilers and other vessels. By their sealing efficiently, provided by exerting strong pressure on circular rimes of the flanges, metal-jacketed gaskets can stand up to 30% deviation from the initial thickness, which is very useful in case of irregular or faulty flange rims. The chemical compatibility of the metal and the medium being sealed should be considered. MATERIAL: Metal materialDinMaterial No.HardnessHBTemperature (℃)Densityg/cm3CS/Soft Iron1.1003/1.003890~120-60~5007.85SS304, SS304L1.4301/1.4306130~180-250~5507.9SS316, SS316L1.4401/1.4404130~180-250~5507.9Copper2.009050~80-250~4008.9Aluminium 3.025520~30-250~3002.73Other special metal Ti, Mon 400 are also available on request. Materials for the insert:Flexible Graphite, ASB, Non-ABSceramic fiber, mica etc
Detailed Product DescriptionGraphite Packing Ring -content of graphite: at least 99% -can be reinforced by 304ss ,nickle wire -content of wire mesh:60% Graphite Packing Ring, Graphite Gasket is
Non-asbestos Gasket is a sealing material made by adding special adhesives and a little packing into it, then roll and sulfurated. It is a replacement of asbestos gasket.Non-asbestos Gasket has better
CONSTRUCTION: ZT-410(Graphite Sheet Jacketet Tanged Metal) is made by materials of three cascades. A laminated graphite is inserted into a convexo-plane metal frame perforated. It is produ
Reinforced Asbestos Free Sheets (1) stainless steel wire-mesh inserted (2) high temperature and high pressure 3) 0% asbestos Reinforced Non-asbestos Sheet The product is made of Non-asbestos She
Description:ZT-600 Spiral-Wound gasket is formed of V-shaped metallic stripe and soft non-metallic filler by means of piled, spiral wound and connected its end and beginning by dot welded. Depend on i
Description: Corrugated Metal Gasket consists of a metal core with concentric grooves on both sides, coated with expanded graphite or PTFE layer. The thickness of metal can be thinner, e.g. 3mm, 2mm,
