CLW5108GSS Water Truck
1) Vehicle model: CLW5108GSS water truck2) Chassis model: EQ1108G6DJ163) Overall dimensions: 7,500 x 2,470 x 3,050mm4) Fact cubage: 10,000-12,000L5) Mass in working order: approx. 6,115kg6) Body internal dimensions: 4,200 x 2,000 x 1,150mm7) Wheelbase: 3,950mm8) F/R track base: 1,900/1,800mm9) Approach/departure angle: 30/18°10) Exhaust/hp: 5,880ml/118kW11) Max. speed: 90km/h12) Tire specification: 9.00-2013) Engine type: EQB160-2014) Traction system: 4 x 215) Transmission: 6 speeds with over drive16) Number of axles: 217) Electric system: 24V18) Allowable passengers in cab: 319) Equipment:a) Equipped with front (rear, side) sprinkler (sprinkling width >14m)b) Equipped with rear working platform with water cannon (range >28m)c) Equipped with CLW pump (suction lift >6m)d) Equipped with fire valve, water valve, and filter gauze20) Engine: Dongfeng Cummins environmentally friendly supercharge diesel engine (Europe II)21) Warranty: 12 months, from the date of supply
1) Vehicle model: CLW5108GXe fecal suction truck2) Chassis model: EQ1108G6DJ163) Overall dimensions: 7,590 x 2,470 x 2,810mm4) Fact cubage: 7,000-8,000L5) Mass in working order: approx. 5,300kg6) Body
1) Vehicle model: CLW5108GXe fecal suction truck2) Chassis model: EQ1108G6DJ163) Overall dimensions: 7,590 x 2,470 x 2,810mm4) Fact cubage: 7,000-8,000L5) Mass in working order: approx. 5,300kg6) Body

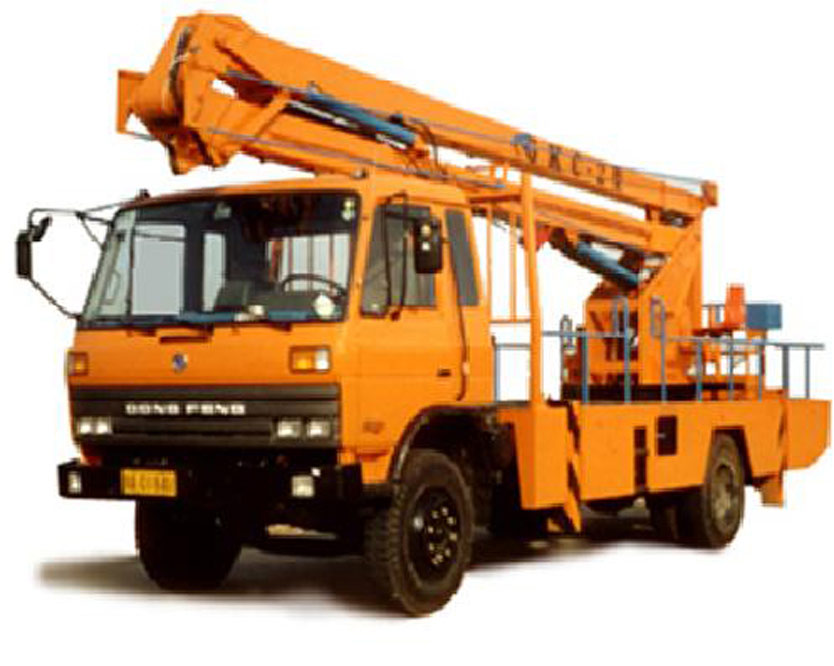

1) Vehicle model: CLW5108JGKZ high-altitude operation truck2) Chassis model: EQ1108G6DJ163) Overall dimensions: 7,210 x 2,470 x 3,560mm4) Mass in working order: approx. 10,000kg5) Wheelbase: 3,950mm6)
1) Vehicle model: CLW5108JGKZ high-altitude operation truck2) Chassis model: EQ1108G6DJ163) Overall dimensions: 7,210 x 2,470 x 3,560mm4) Mass in working order: approx. 10,000kg5) Wheelbase: 3,950mm6)
