Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge

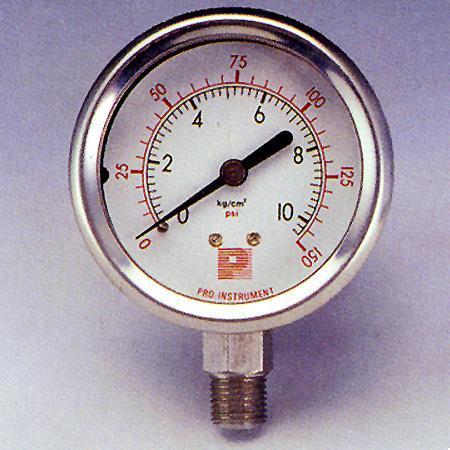

The liquid filled pressure gauges are designed for the heavy duty service where excessive plusation, shock and vibration are encountered, such as pumps, compressors, HVAC and hydraulic systems. The liquid-filled minimizes the effects which comes from above mentioned severe enviroments and the 300 series stainless steel housing provides corrosion resistance at an economical price. The gauges are available in a number of pressure ranges, connections and mounting configurations. SPECIFICATIONS: Norminal size : 1 1/2`` (40mm), 2``(55mm), 2 1/2``(63mm) 3`` (75mm), 4``(100mm) Measuring range : 76cm Hg Vac. to 10,000 psi (- 1 to 600 bar) Casing & bezel : 300 series stainless steel. Window : Glass or engineering plactic. Dial : Aluminum, white background, black graduations and lettering. Movement : Brass Bourdon tube : 316L stainless steel.(or 304) Filling : 99.5% Glycerin or 1000# silicone oil Connection : 1/8``, 1/4``, 3/8``, 1/2`` NPT/BSPT are standard. Pointer : Aluminum, black painted,. Accuracy : +- 3.2.3% f.s.d. for 1 1/2``, 2``, 2 1/2`` size gauges. +/- 1.5% f.s.d for 3``, 4``, 6`` size gauges Temperature range: -20C to +60C

Add to BasketAdd to Basket Web addressWeb address



Other goods of this manufacturer :
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)
Capsule type pressure gauges are applied to measure low and extremely low positive or negative pressure,in parbcular of gaseous fluid, and the use with liquid fluid is limited. the capsule is a modif
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)
The stainless steel pressure gauges provides a high quality stainless steel housing and internal has been designed for heavy duty operation in the process industrial where corrosion resistance and sa
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)
SPECIFICATIONS: Size : Coupling : 3/4`` brass with rubber washer
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)
The stainless steel pressure gauges provides a high quality stainless steel housing and internal has been designed for heavy duty operation in the process industrial where corrosion resistance and sa
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)

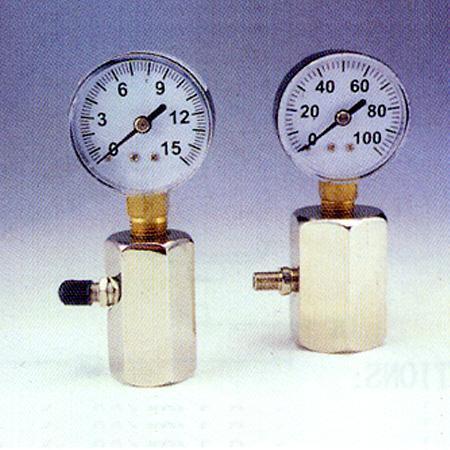

SPECIFICATIONS: Type : Horizontal Assembly Gauge : P100 / P140 / P170 2`` Dial with 1/4`` connector Test Connector : 1/2``, 3/4``, 1`` material available brass or steel with plating Tire Type Air V
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)
The stainless steel pressure gauges provides a high quality stainless steel housing and internal has been designed for heavy duty operation in the process industrial where corrosion resistance and sa
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)
SPECIFICATIONS: Type : Horizontal Assembly Gauge : P100 / P140 / P170 2`` Dial with 1/4`` connector Test Connector : 1/2``, 3/4``, 1`` material available brass or steel with plating Tire Type Air V
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)
The stainless steel pressure gauges provides a high quality stainless steel housing and internal has been designed for heavy duty operation in the process industrial where corrosion resistance and sa
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge
Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge (Hydraulic,Pneumatic Pressure Gauge,Pressure Gauge)
The gauge is designed to monitor pressure which stay inside of the fire extinguisher container, oxygen or nitrogen steel container. The element uses capsule or spiral trbe which operates upon expansi
