Industrial Equipment / Manufacturing Industry Equipment / Wood Working Machinery /

Automatic Edging Machine (Автоматические машины Обшивка)

Zoom in

Send Request

about this service

Producer information

Company:
Qingdao Huashunchang Wood-Working Machinery Manufacturing Co., Ltd.

Address:
Yuntougu Village, Xiazhuang Street, Chengyang, Qingdao, China

Phone:
+86-532-87789520

Automatic Edging Machine

Product Name: Automatic Edging MachineModel Number: MD514APlace of Origin: ChinaSpecifications:1) Rolling edge-banding belt thickness: 0.4-3mm2) Rolling edge-banding belt height: 12-45mm3) Workpiece thickness: 10-40mm4) Min. workpiece width: 80mm5) Min. workpiece length: 160mm6) Air pressure: 0.7MPa7) Power of accessorial heating device: 0.12kW8) End-trimming motor: 0.35kW x 2 12,000r/min 200Hz9) Edge-removing motor: 0.7kW x 2 12,000r/min 200Hz10) Buffing motor: 0.18kW x 2 1,400r/min 50Hz11) Heating power of glue motor: 1.5kW12) Glue axle motor: 0.75kWPacking:Wooden package or hob package

Add to Basket

Web address

Other goods of this manufacturer :

Automatic Post Forming Machine
	Product Name: Automatic Post Forming MachineModel Number: MHA3100Place of Origin: ChinaFeatures:1) Max. workpiece length: 3,100mm2) Workpiece forming height: 12 - 80mm3) Min. workpiece width: 200mm4)

Automatic Post Forming Machine
	Features:1) Max. workpiece length: 3,100mm2) Workpiece forming height: 12 - 80mm3) Min. workpiece width: 200mm4) Max. motor power: 6kW5) Max. heating temperature: 2106) Min. entering air pressure: 0.7

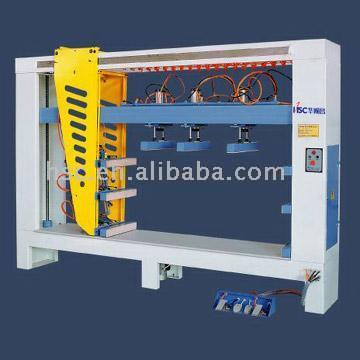

Board Furniture Assembling Machine
	Product Name: Board Furniture Assembling MachineModel Number: BJZ1422/10Place of Origin: ChinaMain technical parameters:1) Motor power: 0.55kW2) Elevating speed of presser: 0.392m/min3) Max. assemblin

Board Furniture Assembling Machine
	Main technical parameters:1) Motor power: 0.55kW2) Elevating speed of presser: 0.392m/min3) Max. assembling size: 2,200 x 1,000mm4) Pressure of compressed air: 0.44-0.64MPa5) Machine outline size: 3,7

Double Rows Multi-Spindle Boring Machine
	Product Name: Double Rows Multi-Spindle Boring MachineModel Number: MZ7221BPlace of Origin: ChinaFeatures: 1) Max. workpiece width: 750mm2) Max drilling depth: 50mm3) Distance between spindles: 32mm4)

Double Rows Multi-Spindle Boring Machine
	Features:1) Max. workpiece width: 750mm2) Max drilling depth: 50mm3) Distance between spindles: 32mm4) Spindle number: 2 x 21 digits5) Single motor power: 1.5kW6) Gross power: 3kW7) Revolving speed of

Double Rows Multi-Spindle Boring Machine
	Features:1) Max. workpiece width: 750mm2) Max. drilling depth: 50mm3) Distance between spindles: 32mm4) Spindle number: 2 x 21 digits5) Single motor power: 1.5kW6) Gross power: 3kW7) Revolving speed o

Double Rows Multi-Spindle Boring Machine
	Features:1) Max. workpiece width: 750mm2) Max. drilling depth: 50mm3) Distance between spindles: 32mm4) Spindle number: 2 x 21 digits5) Single motor power: 1.5kW6) Gross power: 3kW7) Revolving speed o

Double Rows Multi-Spindle Boring Machine
	Product Name: Double Rows Multi-Spindle Boring MachineModel Number: MZ7221APlace of Origin: ChinaFeatures:1) Max. workpiece width: 750mm2) Max. drilling depth: 50mm3) Distance between spindles: 32mm4)
