XLPE Insulated Power Cable
1. Model no.: YJV, YJLV, YJY, YJV22, YJV32, YJV33, YJV42 and YJV432. Rated voltage: 0.6/1kV3. Minimum bending radius:a) For single core cable is 20Db) For multi-core cable is 15D* D=actual outer diameter of cable sample (mm)4. Installation temperature: the environment temperature should not be under 0°C5. Working temperature:a) For PVC sheathed: it is no more than 90°Cb) For PE sheathed: it is no more than 80°C6. There is no restriction of loss for cable
1. We can manufacture all kinds of K3 class, 1E grade cables for nuclear power stations, such as coaxial cables, instrumentation cables, power cables and control cables2. Implemented standard: enterpr
1. Application: it is used as power cable for submersible oil pump unit which is fixed-laid in oil well of the land or platform offshore2. Construction and material:a) Conductor: copperb) Insulation:
1. Model no.: JV, JF, JXN, JXF, JE, JH, JEH, JEM and JG2. Voltage grade: 500V, 1,000V, 3,000V, 6,000V3. Long-term working temperature of wire is classified as 70°, 90°, 125° and 180°4.
1. This product has high fire-resistant ability. When it is on fire, break-circuit or short-circuit failure will not occur in a certain period2. Rated voltage: 450/750V3. Implemented standard: fire-re

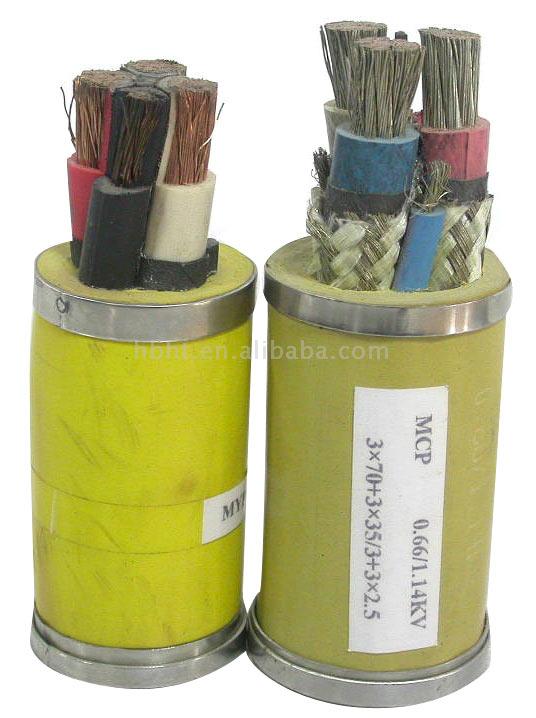

1. Model no.: MC and MCP2. Rated voltage: 0.38/0.66kV, 0.66/1.14kV, 1.9/3.3kV3. Allowed long-term working temperature of cable conductor:a) For the cable with rated voltage 0.66/1.14kV and below, it i
