75 Ohms Coaxial Cable Standard Shield
|
|
Specifications:1) Inner conductor: BC Φ1.63mm2) Dielectric: solid PE Φ 7.11mm3) Shield: AL/P foil and AL0.16mm braiding 4) Jacket: PVCΦ10.05mm All specifications are optional as per cus
|
| |
|
75 Ohms Coaxial Cable Tri
|
|
Specifications:1) Inner conductor: BC Φ1.63mm2) Dielectric: solid PE Φ 7.11mm3) Shield: AL/P foil and AL0.16mm braiding 4) Jacket: PVCΦ10.1mm All specifications are optional as per cust
|
| |
|
75 Ohms Coaxial Cable With Dual Electric Wires
|
|
Specifications:1) Inner conductor: BC Φ0.81mm x 72) Dielectric: solid PE Φ 3.66mm3) Shield: AL/P foil and AL0.12mm braiding 4) Jacket: PVCΦ6.1mm All specifications are optional as per c
|
|
|
|
75 Ohms Coaxial Cable With Dual Electric Wires
|
|
|
Specifications:1) Inner conductor: BC Φ0.81mm x 72) Dielectric: solid PE Φ 3.66mm3) Shield: AL/P foil and AL0.12mm braiding4) Jacket: PVCΦ6.1mmAll specifications are optional as per cus
|
| |
|

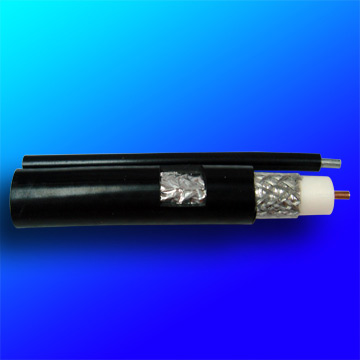

75 Ohms Coaxial Cable With Messenger
|
|
Specifications:1) Inner conductor: BC Φ1.63mm x 22) Dielectric: foam PE Φ 7.11mm x 23) Shield: AL/P foil and AL0.16mm braiding x 24) Jacket: PVCΦ10.05mm x 25) Messenger: steel &Phi1.15A
|
| |
|
75 Ohms Coaxial Cable With Messenger
|
|
|
Specifications:1) Inner conductor: BC Φ1.63mm x 22) Dielectric: foam PE Φ 7.11mm x 23) Shield: AL/P foil and AL0.16mm braiding x 24) Jacket: PVCΦ10.05mm x 25) Messenger: steel &Phi1.15A
|
|
|
|
75 Ohms Coaxial Cable with Standard Shield
|
|
Specifications:1) Inner conductor: BC Φ0.81mm2) Dielectric: solid PE Φ 3.66mm3) Shield: AL/P foil and AL0.12mm braiding4) Jacket: PVCΦ6.1mmAll specifications are optional as per custome
|
| |
|
75 Ohms Coaxial Cable with Standard Shield
|
|
Specifications:1) Inner conductor: BC Φ1.02mm2) Dielectric: foam PE Φ 4.6mm3) Shield: AL/P foil and AL0.12mm braiding4) Jacket: PVCΦ6.9mmAll specifications are optional as per customer`
|
| |
|
75 Ohms Coaxial Cable with Standard Shield
|
|
|
Specifications:1) Inner conductor: BC Φ1.02mm 2) Dielectric: foam PE Φ 4.6mm3) Shield: AL/P foil and AL0.12mm braiding 4) Jacket: PVCΦ6.9mm All specifications are optional as per custom
|
|
