Description

Computers, Software & Peripherals / Computer Accessories / Cables / Adapters /

Data Communication Cable (Передачи данных Кабельные)

Zoom in

Producer information

Company:
Zhejiang Zhengdao Cable Co., Ltd.

Address:
18 Huyan East Road, Lianshi Town, Huzhou, Zhejiang, China (Mainland) Zip: 313013

Phone:
+86-21-29601378

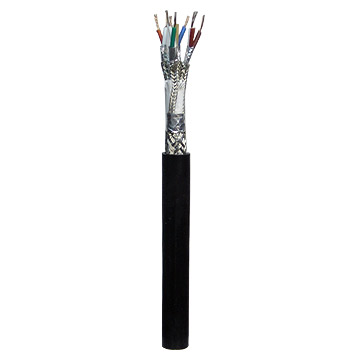

Data Communication Cable

Specifications:1) Type: CAT5/STP (4PR/24AWG)2) Material instruction:a) Conductor: copperb) Insulation: solid HDPEc) Wrapping tape: polyester ribbond) Drain wire: tinplate copper;e) Shield: aluminum foilf) Sheath: PVC, PE, LSOH3) Characteristic impedance (Zo) (1 - 100MHz): 100±15 Ohm4) Maximum insertion loss (IL) at 100MHz: 22dB/100m5) Minimum return loss (RL) at 100MHz: 15.7dB/100m6) Minimum near end cross talk loss (NEXT) at 100MHz: 32dB/100m7) Power sum NEXT (PSNEXT) at 100MHz: 32.3dB/100m8) Equal level far end cross talk loss (ELFEXT) at 100MHz: 21dB/100m9) Power sum ELFEXT (PSELFEXT) at 100MHz: 21dB/100m10) Velocity of propagation (VOP) at 100MHz: 0.620c/100m11) Propagation delay (DELAY) at 100MHz: 538ns/100m12) Propagation delay skew (SKEW) (1 - 100MHz): 45ns/100m13) Standard length: 305m14) Weight: 14kg15) Nominal diameter: 5.3±0.1mm16) Max. strain power: 80N17) Temperature range: -40 ~ +60oC18) Standard:a) ISO/IEC11801b) ANSI/EIA/TLA-568-Ac) YD/T1019-2001d) YD/T838-1996e) UL-44419) Other available specifications: 25 pairs and 50 pairs of UTP, FTPcables for indoor/outdoor applicationsInner packing:305m/box

Add to Basket
