Ultra-Miniature PC Board Type Power Relay (Ультра-миниатюрный компьютер совет типа Power Relay)

Zoom in

Producer information

Company:
Dongguan Sanyou Electrical Appliances Co., Ltd.

Address:
Erhuan Road, Xitou Industrial Zone, Houjie Town, Dongguan City, Guangdong Province. China

Phone:
+0086-755-83630836 +83657816

Ultra-Miniature PC Board Type Power Relay

Approval:1) UL, C-UL file no.: E1797452) TUV no.: R400074813) CQC no.: CQC02001002131Features:1) Idea for motor switching2) Miniature relay with high switching capacity built-in applications3) Highly noise-resistive insulation material employed.4) Standard model available with flux protection constructionSpecifications:1) Contact arrangement: 1A2) Contact material: silver alloy3) Contact resistance (6V 1A): 50mΩ (max.)4) Rating:UL/C-UL rating:Resistive load: 20A 250VACVDE rating:Resistive load: 20A 250VACCQC rating: 20A/80A 250VAC5) Max. switching voltage: 250VAC6) Max. switching current: 20A7) Max. switching power: 5,000VA8) Expected life (min. ope) mechanical at 120cpm: 1 x 1079) Expected life (min. ope) electrical at 20cpm: 1 x 105Coil data:1) Coil consumption sensitivity: 0.900W2) Coil voltage: 3 - 48VDCCharacteristics1) Operation time: 20msec. (max.)2) Release time: 10msec. (max.)3) Initial breakdown voltage between coil and contact: 4,000VAC (50 / 60Hz) for 1min4) Initial breakdown voltage between open contacts: 1,000VAC (50 / 60Hz) for 1min5) Insulation resistance: 100MΩ (min.) (500VDC)6) Ambient temperature: -40 ~ +80°C7) Operating humidity: 45 - 85% RH8) Shock resistance (functional): 10G (min.)9) Shock resistance (destructive): 100G (min.)10) Vibration resistance (functional): 10 - 55Hz at double amplitude of 1.5mm11) Vibration resistance (destructive): 10 - 55Hz at double amplitude of 1.5mm12) Unit weight: 35g (approx.)13) Coil specification (at 20°C):a) Pick-up voltage (VDC): 75% (max.)b) Drop-out voltage (VDC): 5% (min.)

Add to Basket

Web address

Other goods of this manufacturer :

Automovit Relay Relay
	Features:1) High switching power, low cost, high performance2) Single and double contact types offer switching capacity of 40A3) Automobile alarm/security system relaysSpecifications:1) Contact arrang

Automovit Relay Relay
	Product Name: Automovit Relay RelayModel Number: SAREPlace of Origin: ChinaFeatures:1) High switching power, low cost, high performance2) Single and double contact types offer switching capacity of 40

Miniature PC Board Relay
	Features:1) Switching current: 5A (2 poles type)2) Printed circuit board terminal use, soldered plug-in mount3) Low coil power consumption, high response time4) High reliability, long life5) Flange ca

Miniature PC Board Relay
	Features:1) Switching current: 5A (2 poles type)2) Printed circuit board terminal use, soldered plug-in mount3) Low coil power consumption, high response time4) High reliability, long life5) Flange ca

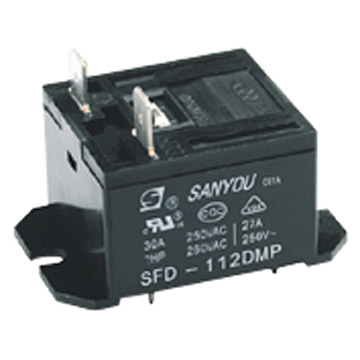

30A PC / Flange Mount Miniature Relay
	Approval:1) UL, C-UL file no.: E1905982) TUV no.: R400077933) CQC no.: CQC02001002130Features:1) 1 form A (SPST-NO) contact2) Heavy duty: 30A power relay3) High inrush current: 65A and high surge volt

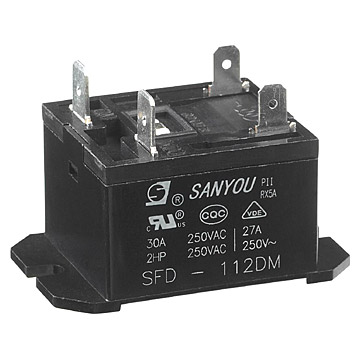

30A PC / Flange Mount Miniature Relay
	Approval:1) UL, C-UL file no.: E1905982) TUV no.: R400077933) CQC no.: CQC02001002130Features:1) 1 form A (SPST-NO) contact2) Heavy duty: 30A power relay3) High inrush current: 65A and high surge volt

30A PC / Flange Mount Miniature Relay
	Approval:1) UL, C-UL file no.: E1905982) TUV no.: R400077933) CQC no.: CQC02001002130Features:1) 1 form A (SPST-NO) contact2) Heavy duty: 30A power relay3) High inrush current: 65A and high surge volt

30A PC / Flange Mount Miniature Relay
	Approval:1) UL, C-UL file no.: E1905982) TUV no.: R400077933) CQC no.: CQC02001002130Features:1) 1 form A (SPST-NO) contact2) Heavy duty: 30A power relay3) High inrush current: 65A and high surge volt

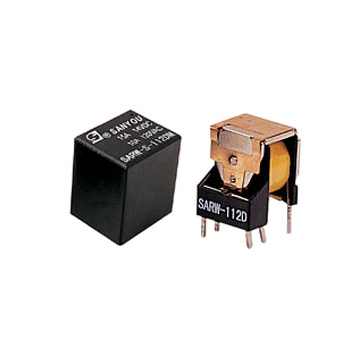

Automotive Relay
	Product Name: Automotive RelayModel Number: SARWPlace of Origin: ChinaSpecifications:1) Contact arrangement: 1A, 1C2) Contact material: silver alloy3) Contact resistance (6V 1A): 100mΩ (max.)4) R
