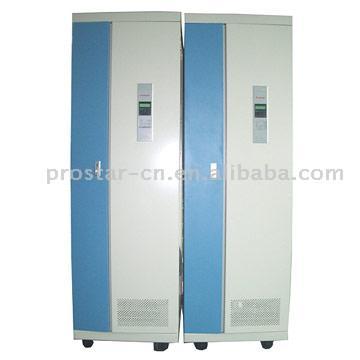

Product Name: 6000 Series Three in and Single Out UPS (6-60kVA)Place of Origin: ChinaFeatures:1) Multiple CPU intelligent controls2) Advance IGBT inverted technology3) Advance control design structure4) Intelligent by-pass switch5) Personal display interface6) Battery switch-on function7) Advance phase-balanced technology8) Sole parallel redundant structureSpecifications:1) Mode: SP6K-60K (three in and single out)2) Capacity (kW): 6-60kVA3) Input voltage: three phases with four lines + ground wire, 380V±25%4) Battery DC voltage:a) 6-20kVA: 192Vb) 30-60kVA: 336V5) Noise:a) 6-20kVA: ≤60dB, 1m distanceb) 30-60kVA: ≤65dB, 1m distance6) Dimensions (W x D x H):a) 6-20kVA: 620 x 343 x 995mmb) 30-60kVA: 650 x 700 x 1,510mm7) Weight (excluding battery):a) 6kVA: 130kgb) 10kVA: 165kgc) 15kVA: 190kgd) 20kVA: 210kge) 30kVA: 400kgf) 40kVA: 450kgg) 50kVA: 530kgh) 60kVA: 620kg8) Input frequency: 50Hz/60Hz±10%9) Input power actor: ≥95%10) Output voltage: 220V±0.5%11) Output voltage regulation: stable voltage ±1%, dynamic voltage±2% (0-100% load fluctuation 20ms)12) Output frequency stableness: 50Hz/60Hz±0.05%13) Output frequency torsion rate: less than 1Hz/sec14) Output instant load status: ±0.4% (100% instant load fluctuation)15) Output harmonic distortion: for linear load, less than 3% (full load), totalrectifying harmonics is lass than 5%16) Output overload capacitance: 150%17) Output wave form: sine wave18) Efficiency: above 95%19) Transfer time: 0 second20) Battery charging time: if it is fully charged, it can be filled to 90% of thetotal capacity after it is charged for 8 hours21) Temperature: -10-50°C22) Relative humidity: 10-90% (no condensation)23) Operation condition: lower than 1,500 meters above sea level (altitude)

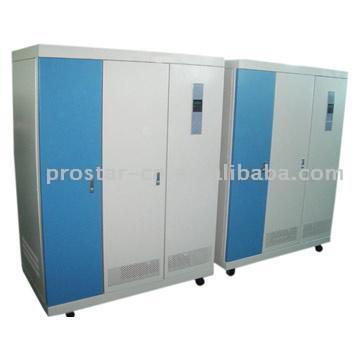

Product Name: 8000 Series Three In and Three Out UPS (6-400kVA)Place of Origin: ChinaFeatures:1) Multiple CPU intelligent controls2) Advance IGBT inverted technology3) Advance control design structure
Product Name: Uninterrupted Power Supply (UPS)Place of Origin: ChinaFeatures:1) Multiple CPU intelligent controls2) Advance IGBT inverted technology3) Advance control design structure4) Intelligent by
