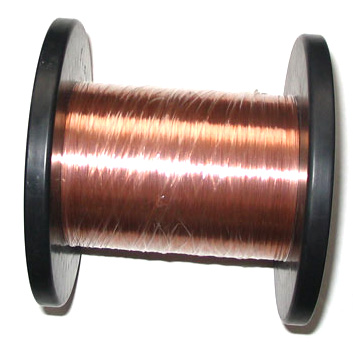

Copper Clad Aluminum (CCA) Wire
1) Diameter: 0.10 - 4.00mm2) It is mainly used as conductor under high-frequency in coaxial cable taking theplace of pure copper wire3) It is divided into soft state (A kind) and hard state (H kind)4) It is divided into 10% and 15% two kinds according to volumetric scale of copperlayer5) The DC resistivity at temperature of 20°C is less than0.02676Ω.mm²/m6) Its nominal density is 3.32g/cm³ - 3.63g/cm³, it is 37 - 40% of purecopper wire7) Under the same weight, its length is 2.5 - 2.7 times that of pure copper wire8) Its surface is bright and smooth, no any defects9) It can save a lot of copper resource10) Its conductivity is good11) It can reduce the production cost of the cable and it is convenient inconstruction12) It has remarkable economic benefit, besides, it is easy to be erected13) It has good softness14) The signal quality is centered15) It has good ability of preventing troubles and the signal is clear16) It has become the most common wire used in CATV and other high-frequencyconduct cable17) It is a bimetallic wire with a copper cladding concentrically covering an aluminumcore, integrating the beneficial properties of the wonderful conductivityof copper and the light-weight of aluminum18) It can be scientifically processed into bare wire and flat wire, and it is thebest material for coaxial cable, computer cable, telephone cable and shieldingcable19) The processing method is similar to that of copper wire during cable manufactureApplications:1) Radiating cable:a) Inner packing: conductor of CATV coaxial cableb) Leaky cablec) Inner packing: conductor of 50Ω RF cabled) Soft coaxial RF cable2) Power transmission:a) grounding wire of power cableb) Conductor of control cablec) Twisted pair power cabled) Building distribution wirePacking:Plastic bobbin cable and shielding cableInner packing: packing:Different bobbins according to customers` requirementsOuter packing:Carton
