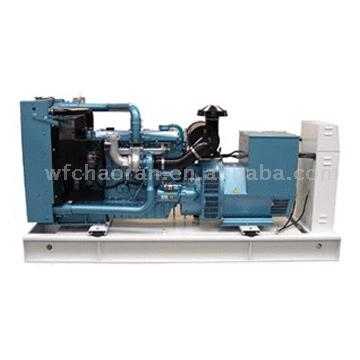

Specifications:1) Output range: from 24kW (30kVA) up to 120kW (150kVA)2) Engine model: D226B-3D, TD226B-3D, TD226B-4D, TBD226B-6D5, TD226B-6D3) Alternator model: GM/MP/UC4) Water-cooled5) Key start / auto start, low noise6) Control system:a) Automatic alarm system: the unit has the acousto-optics alarmsystem and arrestor for any situation as the start defeat, the wateris over temperature, the oil pulls down, over speed, over load andover currentb) Operation display:i) Unit voltage, tri-phase load current and frequency displayii) Water temperature, oil pressure displayiii) Fuel level, fuel temperature displayiv) Audible and visual alarm lamps and buzzersStandard configuration of gensets:1) Engine model: TD226B-6D2) Alternator model: UCI274E3) Rated output: 75kW (93.75kVA)4) Closed cooling5) Fuel consumption: 220g/kWh6) Prepare output: 84kW (105kVA)7) Rated voltage: 230 / 400V8) Rated current: 135.3A9) Power factor: 0.8 lagging10) Connection type: 3-phase, 4-wire11) Rated frequency: 50 / 60Hz12) Excitation way: brush or brushless13) Rotating speed: 1,500/1,800rpm14) Overall dimensions: 2,300 x 780 x 1,500mm15) Weight: 1,210kg16) Accessories: exhaust elbow, bellow, muffler17) Supply standard collocation:a) Diesel engine with all accessories, 3 filters and electric systemsb) Alternatorc) Steel structured) Fan and water tank cooling systeme) Flange connectorf) 12 / 24V starting motor and charge engineg) Air cleaner, fuel cleaner, oil cleanerh) On-board control paneli) MCCB air conservation switchj) 12 / 24V starting accumulator and battery linek) Set shock absorberl) High-efficient silencerPacking:Wooden case
